Suitable Width: 1320mm
Material Thickness: 0.2-0.7mm or customized
Forming Station: 26 steps+6 steps
Shaft Diameter: 95mm
Producing Speed: 15-25m/min or custom design machine according to your required speed
Cutting Blade Material: Cr12
Roll Forming Machine Technical Parameter
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH or customized |
| Driving Motor | 11KW |
| Hydraulic Cuting Motor | 5.5KW |
| Forming Steps | 26+6 |
| Working Speed | 15-25m/min |
| Material Width | 1320mm |
| Thickness for Steel | 0.2-0.7mm |
| Shaft Diameter | 95mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment (base on raw material type) |
| Cutting Type | Flying cut |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G550 |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 11200*1600*1600mm |
| Weight | 7500KGS |
The High Speed Corrugated Roofing Steel Sheet Making Machine you've described has some fantastic advantage. Here are a few key features for you to care:
Flying Cutting Design: The flying cutting design is a major advantage of this machine. It allows for continuous and efficient production by eliminating the need for stopping or slowing down the machine during the cutting process. This not only saves time but also improves overall productivity.
Strong 95mm Shaft Diameter: The solid 95mm shaft diameter is a standout feature. It ensures stability and durability during the roll forming machine production process, reducing the risk of malfunctions or breakdowns. This enhances the longevity and reliability of the corrugated roll forming machine, resulting in consistent high-quality output.
Servo Motor for Improved Line Speed: The inclusion of a servo motor is a significant point of this corrugated roof making machine. Servo motors offer precise control and high-speed performance, enabling faster line speeds without compromising accuracy. This allows for increased production capacity and efficiency, ultimately leading to higher output and profitability.
Customization Options: The ability to customize the machine suit for 900mm, 1000mm and 1320mm feeding width is our another good advantage. This ensures that the roll forming machine can be tailored to meet the unique needs of each customer, such as different sheet sizes or specific production targets. This flexibility enhances the machine's versatility and adaptability.
Quality Manufacturing: Being manufactured in China, known for its expertise in machinery production, adds to the machine's selling points. Chinese manufacturers often have advanced facilities, skilled technicians, and strict quality control measures in place, ensuring a high-quality end product.

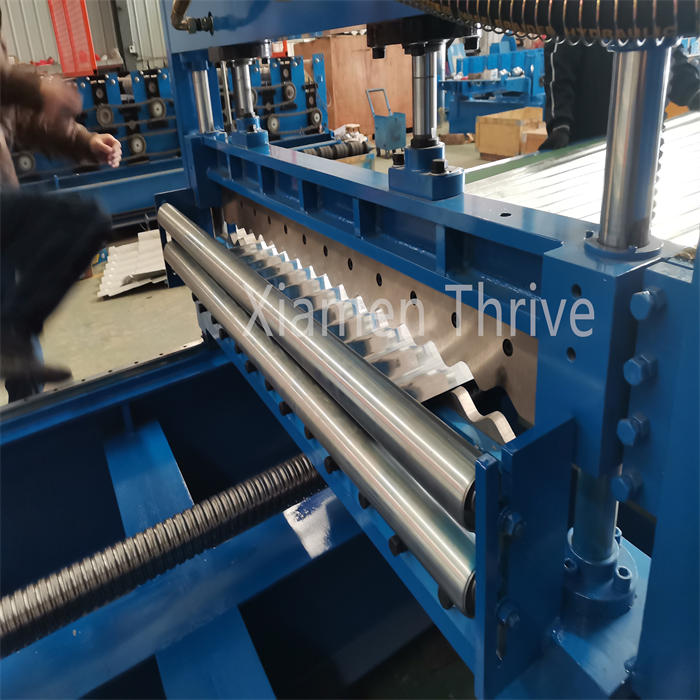

This corrugated sheet roll forming machine is designed to meet the high performance requirements. It adopts the PLC control system, transmission with gear/sprocket, and has a high precision cutting length. This Corrugated Roof Panel Forming Machine is ideal for producing roof panels with high accuracy, high efficiency and stable performance. With a wide range of applications, it is an ideal choice for roof panel forming operation. Its advanced technology ensures a reliable, efficient and safe operation in various environments.
