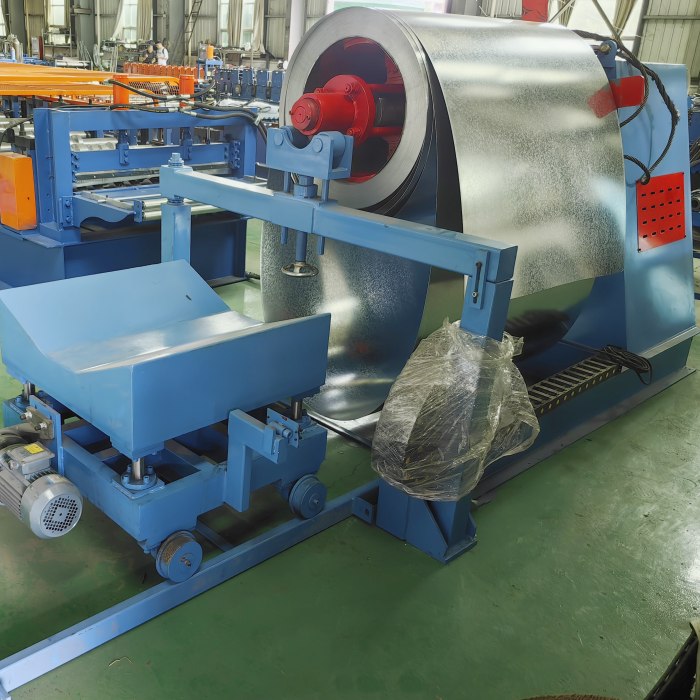

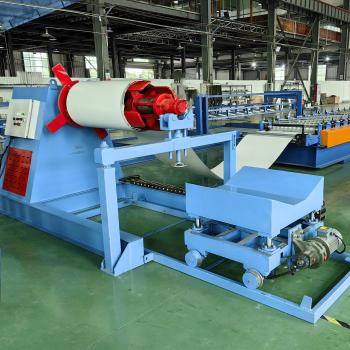

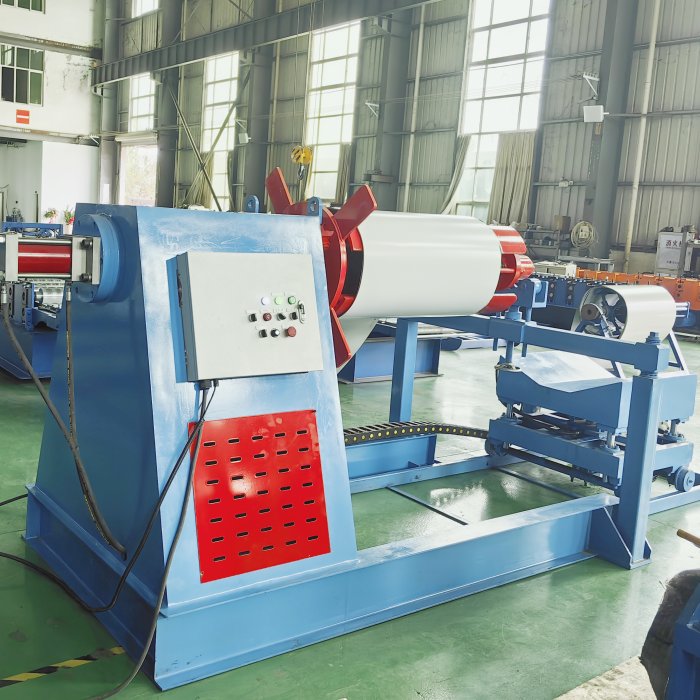

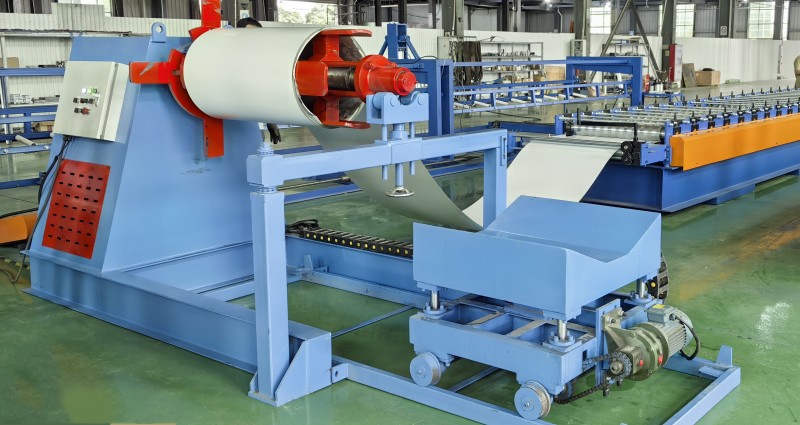

Hydraulic De-coiler with Coil Car

Hydraulic De-coiler with Coil Car

Description of the Product
For high rib metal deck roll forming machines, cut-to-length lines, slitting lines, and metal roof roll forming machine lines, a heavy-duty hydraulic de-coiler with coil car or cart is required. Suitable material width can be customized, with compacting arm or not is the option for buyers, too.

Machine Applications
There are several popular capacities in the market: 5 ton hydraulic un-coilers, 8 ton hydraulic de-coilers, 10 ton hydraulic de-coilers, 12 ton hydraulic de-coilers, and 15 ton hydraulic de-coilers, different capacities un-coiler will be provided according to roll forming line’s raw material feeding width and steel coil weight. Typically, a coil car with a hydraulic de-coiler capacity is more than 5 tons.
Bridge decking machines and heavy-duty roofing machines, among other applications, use the 12-ton hydraulic de-coiler with coil car.

Brief Information
Material Thickness: 0.8~1.2 mm
Material: 345 MPa yield strength, pre-painted coil
1250 mm is the input width.
Maximum material weight: 12 MT
The diameter of the main shaft: about 200 mm
ID of coil: 480-540 mm
Coil OD = Maximum 1500 mm

Technical Parameter details For de-coiler

Hydraulic un-coiler with coil car, 15Tx1500m
Hydraulic motor: 5.5KW, hydraulic system expansion coil inner hole
Main Motor: 7.5KW, frequency inverter to control turning speed
Expanding system with taper wedge
The machine is kept stable by a support arm at the end of the main mandrel.
With a maximum line speed of 15 m/min, the rotation speed should be matched with roll former machines.
Maximum load capacity: 15 tons
The diameter of the main shaft: about 200 mm
ID of coil: 480-540 mm
Coil OD = Maximum 1300 mm
Maximum coil width: 1600 mm

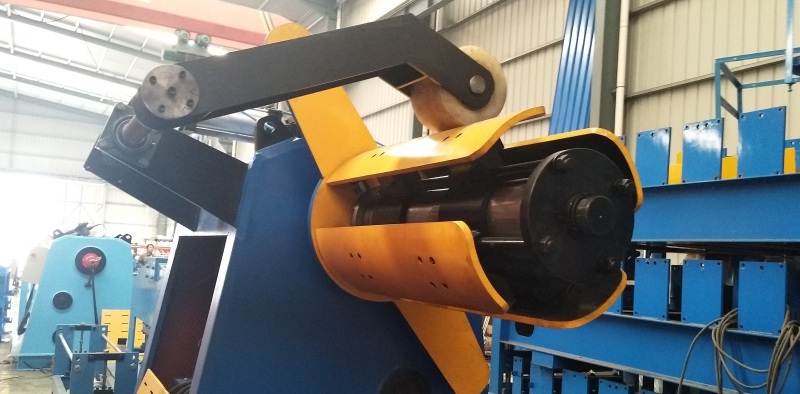

When stopping for packing, the coil is held in place by hydraulic compacting arms on top.
Coil car with a 15-ton cap
powered by an independent motor
Coil car's up/down stroke: up to 300 mm

Forward/backward stroke of coil car: Max. 1600mm
