Automatic Color Steel Metal Roof Roll Forming Machine

Automatic Color Steel Metal Roof Roll Forming Machine

This YX29-200-1000 roll forming machine for roof sheet has film laminated function. We are the factory who is good at Customized manufacture Sheet Metal Roll Forming Machines, below trapezoidal metal sheet roof roll forming machine adopts stand pillar machine frame type, compare to traditional machine frame, it is good for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.

Forming Station: 20 steps
Driving Motor: 11KW
Hydraulic Motor: 4KW
Forming Speed: 18-25m/min
Suitable Material Thickness: 0.3-0.7mm
Effective Width:1000mm
Coil Width for this profiles:1220mm
Pre-painting steel,galvanized sheet, Tension Grade: Q235MPa

INQUIRY NOW

PRODUCT CATEGORY

New Products

DESCRIPTION

High Quality Roof Panel Roll Forming Machine 20 Station Forming

Profile Design Drawing

Raw Material Basic Information

Thickness: 0.3-0.7mm

0.5mm thickness is for inspection, common use

Effective Width:1000mm

Coil Width for this profiles:1220mm

Pre-painting steel,galvanized sheet, Tension Grade: Q235MPa

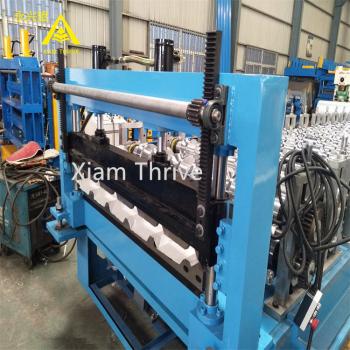

Roof Panel Roll Forming Machine Details

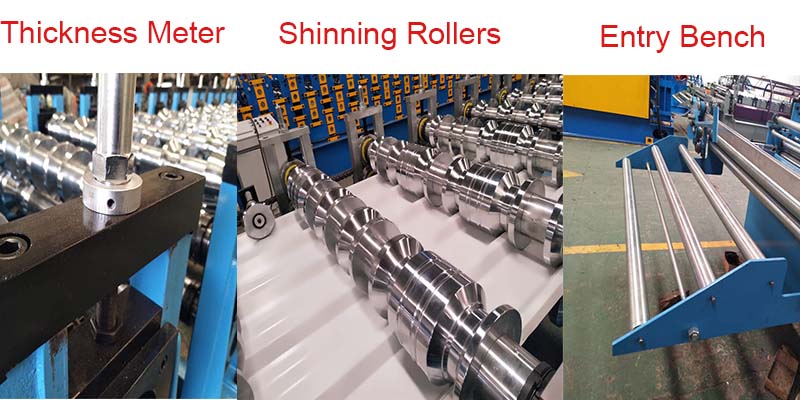

This is the high level design for end user, there are thickness meters on each forming stations for adjusting different steel coiler thickness;

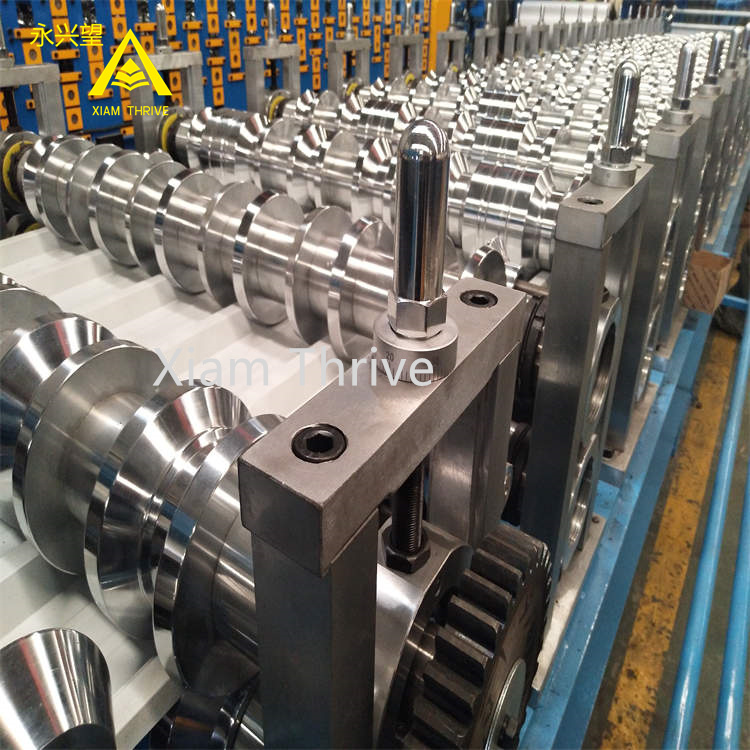

All the forming rollers are fine polished and then hard Chrome coated at outside surface;

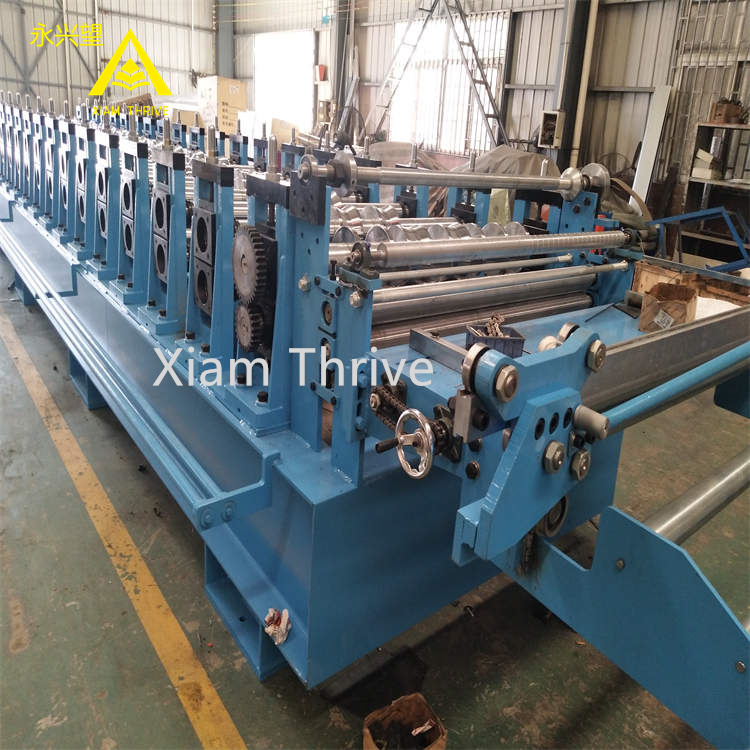

There designed entry bench at machine feeding end, it is good for lead steel coil go into feeding table.

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	11KW
Hydraulic Press/Cuting Motor	4KW
Forming Steps	20
Working Speed	15-25m/min
Material Width	1220mm
Thickness for Steel	0.3-0.7mm
Shaft Diameter	75mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12 steel
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345, Aluminum
Painted Color	Blue+Gray White Or Customization
Overall Size	1050016001600mm
Weight	4500KGS

High speed roof panel roll forming machine

The Color Steel Roof Panel Roll Forming Machine is designed to meet the high performance requirements. It adopts the PLC control system, transmission with gear/sprocket, and has a high precision cutting length. This Roof Panel Forming Machine is ideal for producing roof panels with high accuracy, high efficiency and stable performance. With a wide range of applications, it is an ideal choice for roof panel forming operation. Its advanced technology ensures a reliable, efficient and safe operation in various environments.
