Downspout Forming Machine

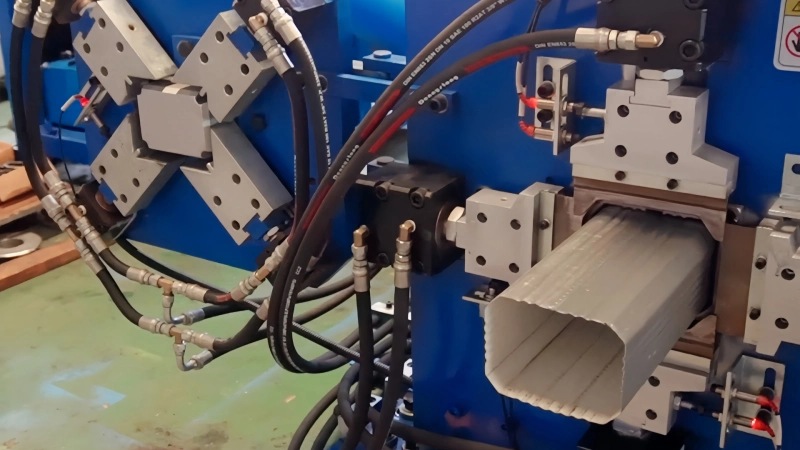

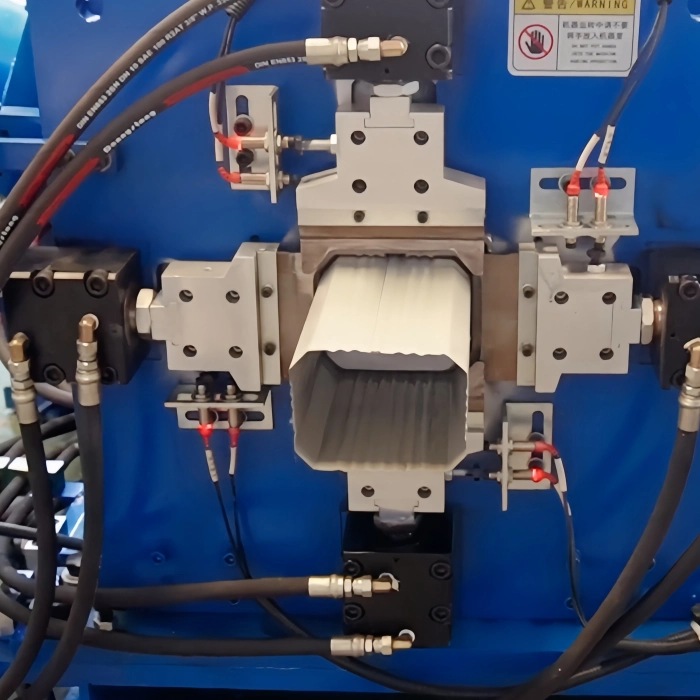

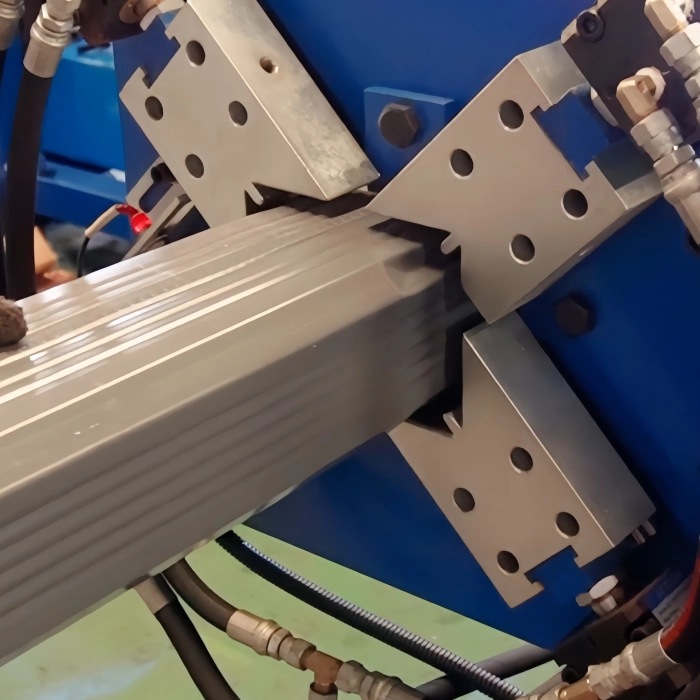

Manufacturing colored steel sheet, this roll forming machine is for producing 110*110mm square downspouts. It can automatically accomplish the cut-to-length procedure because the control system uses PLC control system and AC frequency converter for speed adjustment. This downspout forming machine equipment can be customized according to buyer's engineer need, such as material thickness, pipe sizes.

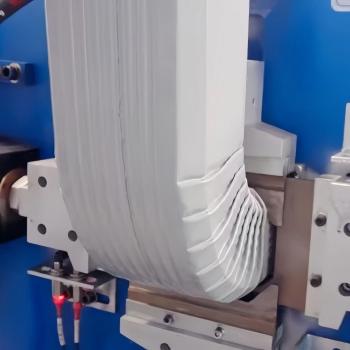

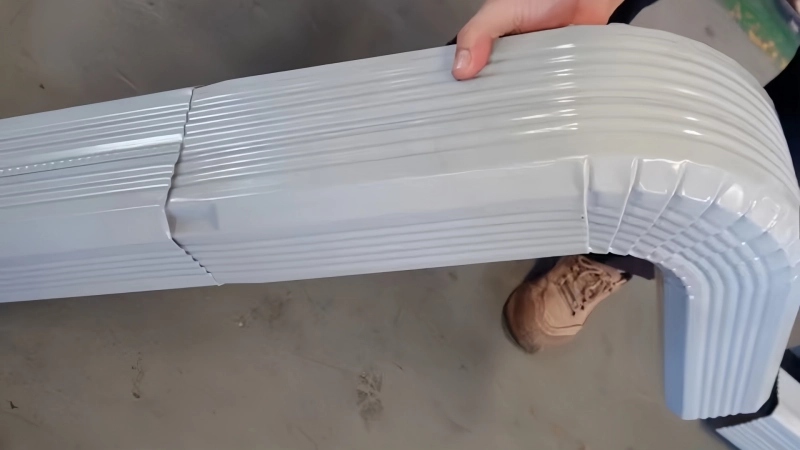

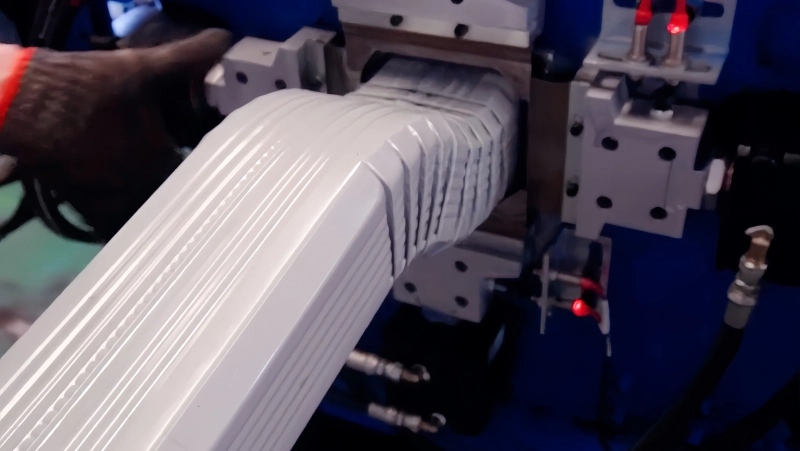

An additional set of equipment that can be utilized for downspout bending and necking is an elbow roll forming. Although the angle can be manually modified, this roll forming machine uses the cam controlling mechanism to accomplish an automated production process.

Depending on the needs of our clients, we are able to develop and produce cold roll forming machines for creating various profiles.

Downspout section specification

Model: 100*100mm

Technical Parameters

Material: Color steel sheet

Thickness (mm): 0.45-0.55

Yield strength(MPa): 230-345

Forming speed(m/min): 20

Roller material: 45# Steel with chrome plated

Roller driven type: Sprocket & chain transmission

Controller: PLC

Operation: Touch screen+button

Hydraulic system pressure(MPa): 12

Hydraulic station motor power(KW): 4

Main motor power(KW): 7.5

Total power(KW): 11.5

Total weight(KG): 7500
