Top Hat Roll Forming Machine

Customized Hat Profile Forming Solutions for Solar Mounting Systems and Steel Structures

Xiamen Thrive manufactures plenty of top hat roll forming machines for producing hat-shaped steel profiles. The machine roll forms flat steel coils through a series of roller stations for getting required shape finally, with optional punching and cutting systems for different application requirements.

For customers manufacturing hat-shaped purlins, solar mounting components, and custom steel support profiles, the machine can be made according to the actual profile drawing, material thickness, steel yield strength, and required output.

If you are looking for a Hat Purlin Roll Forming Machine, the first step is to confirm the profile designs, material thickness and intended application, such as web width, flange dimensions, lip shape, hole design, and material specifications all affect the machine design and cost.

Top Hat Roll Forming Machine Specifications

Below rough machine parameters for PEB and solar mounting system used for reference:

The working thickness, material strength, forming speed, and available profile dimensions depend on the final machine configuration. Confirm all operating parameters with the manufacturer before ordering.

1. Hat Purlin Roll Forming Machine for Solar Mounting Systems

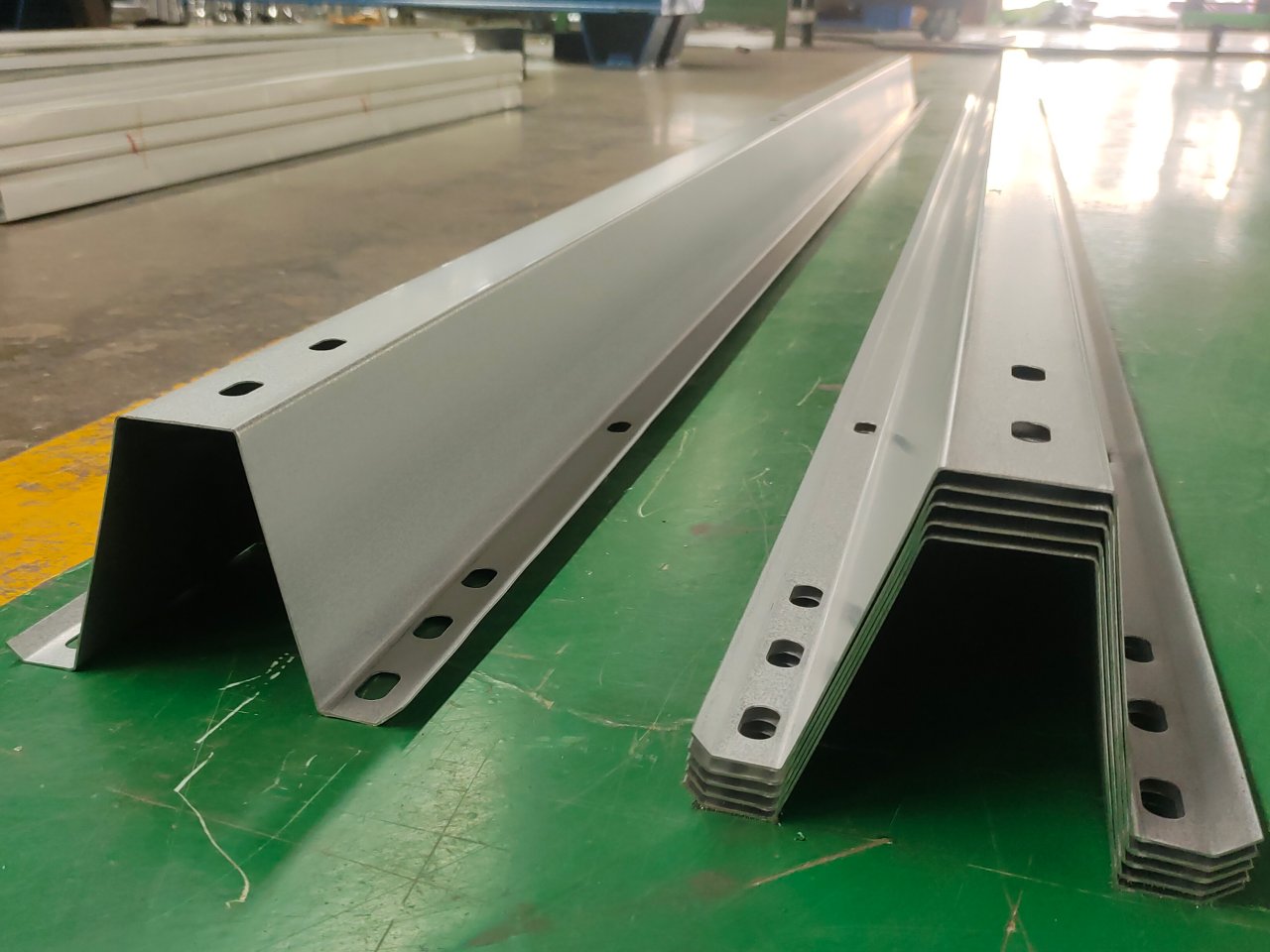

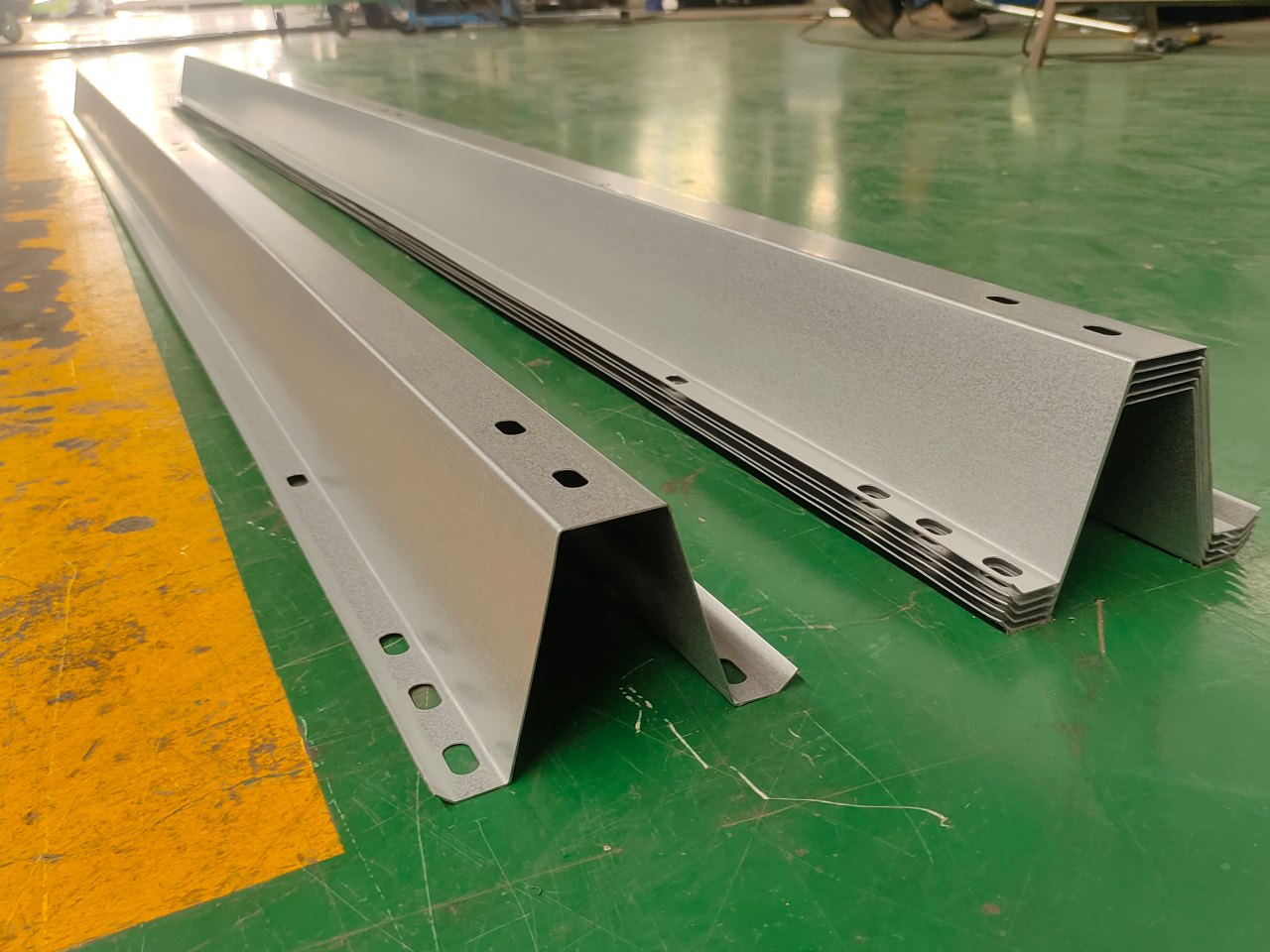

Hat-shaped steel profiles are used in some photovoltaic mounting systems as support beams, mounting rails, and structural components, depending on the engineering design.

A Hat Purlin Roll Forming Machine can be designed as automatic size changeable, it means one set machine can produce different height and web widths. The required profile dimensions and punching positions should be established before the roller tooling and production line are finalized.

For solar mounting applications, pay particular attention to:

Web width and flange height

Return lip shape and height

Material thickness and steel strength

Mounting hole diameter and distance

Producing line daily output

When the profile requires several designs of mounting holes, an online punching unit can be integrated into the production line, we will consider how many groups hydraulic hole punching stations will be needed, also consider whole producing line speed.

2. Custom Manufacture Top Hat Profile Forming Machine for Different Applications

“Top hat profile” describes the shape of the finished section, but not every hat-shaped profile has the same sizes or application.

Xiamen Thrive group can evaluate hat profile drawings for projects involving:

Solar mounting structures: Hat-shaped rails and support stuctures which are specified by the solar mounting system design requires.

Steel support sections: Custom metal sections such as used in suitable framing, installation, and support applications.

Industrial metal components: Hat-shaped profiles customized manufacturing to required sizes, hole styles, and assembly requirements.

For a custom hat profile roll forming machine, the roller designs and layout should be designed around the actual cross-section rather than a generic product name.

3. How the Hat Purlin Roll Forming Machine Works

Step 1: Coil Feeding and Guiding

The steel coil is loaded onto the de-coiler and fed into the roll forming machine section through material guiding device.

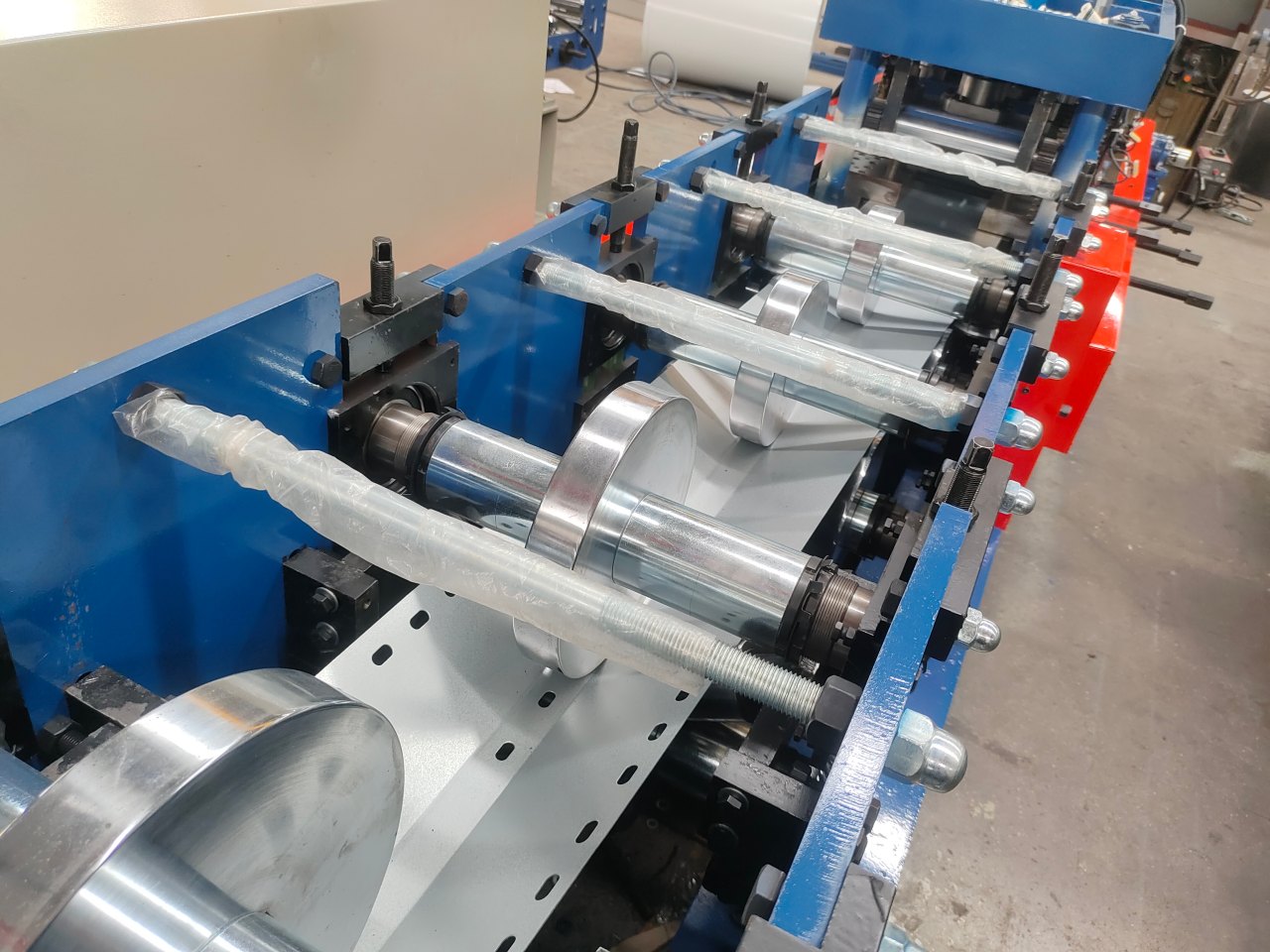

Step 2: Automatic Roll Forming

The steel strip goes into 16 forming stations and then followed by 3 shaping stations in this configuration. Each station makes a needed bend angle until the required hat-shaped cross-section is formed.

The forming rollers will be layout and installed depends on the profile details, material thickness, and steel yield strength.

Step 3: Hydraulic Online Punching

If the finished hat purlin requires mounting holes or slots, Online hydraulic punching system has been matched together with roll forming lines. The punching die design and hole positions should follow the approved profile drawing, and all hole punch actions will be controlled by PLC system.

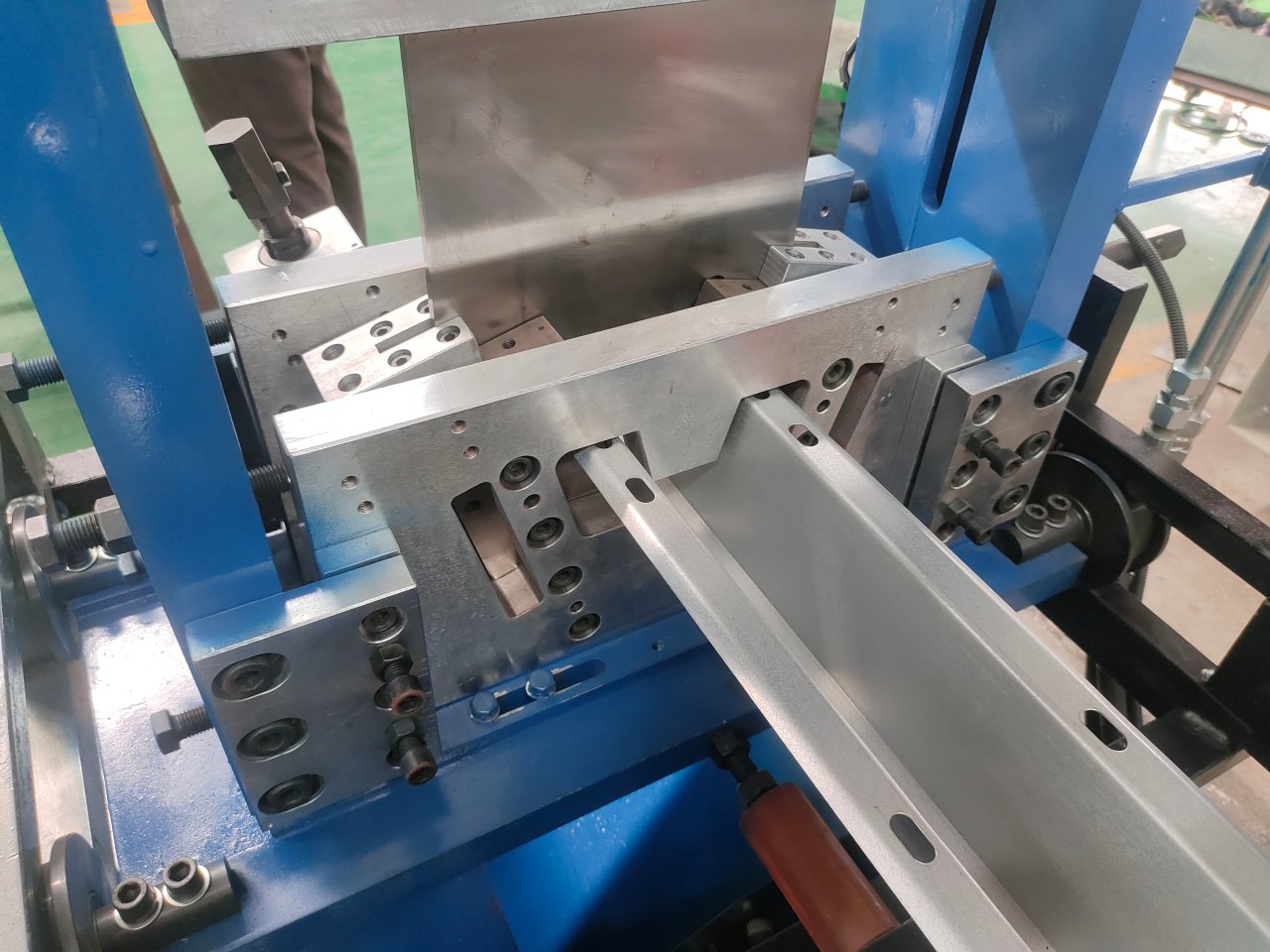

Step 4: Hydraulic Cutting to Length

The formed profile will be cut off according to the specified length. Hydraulic cutting or a suitable flying cut-off system can be considered according to the material, profile shape, and production requirements.If whole roll forming machine line need fast line speed, flying cut system will be good choice,too.

Step 5: Finished Profile Inspection

Inspect the shape and surface effect of web, flanges, lips, overall dimensions, straightness, hole positions, and cut ends. We will trial top hat roll forming machine line by steel coil, it is for testing automatic producing, auto size change, auto cut-to-length, hydraulic punch, ensure all actions are working well and full controlled by PLC system.

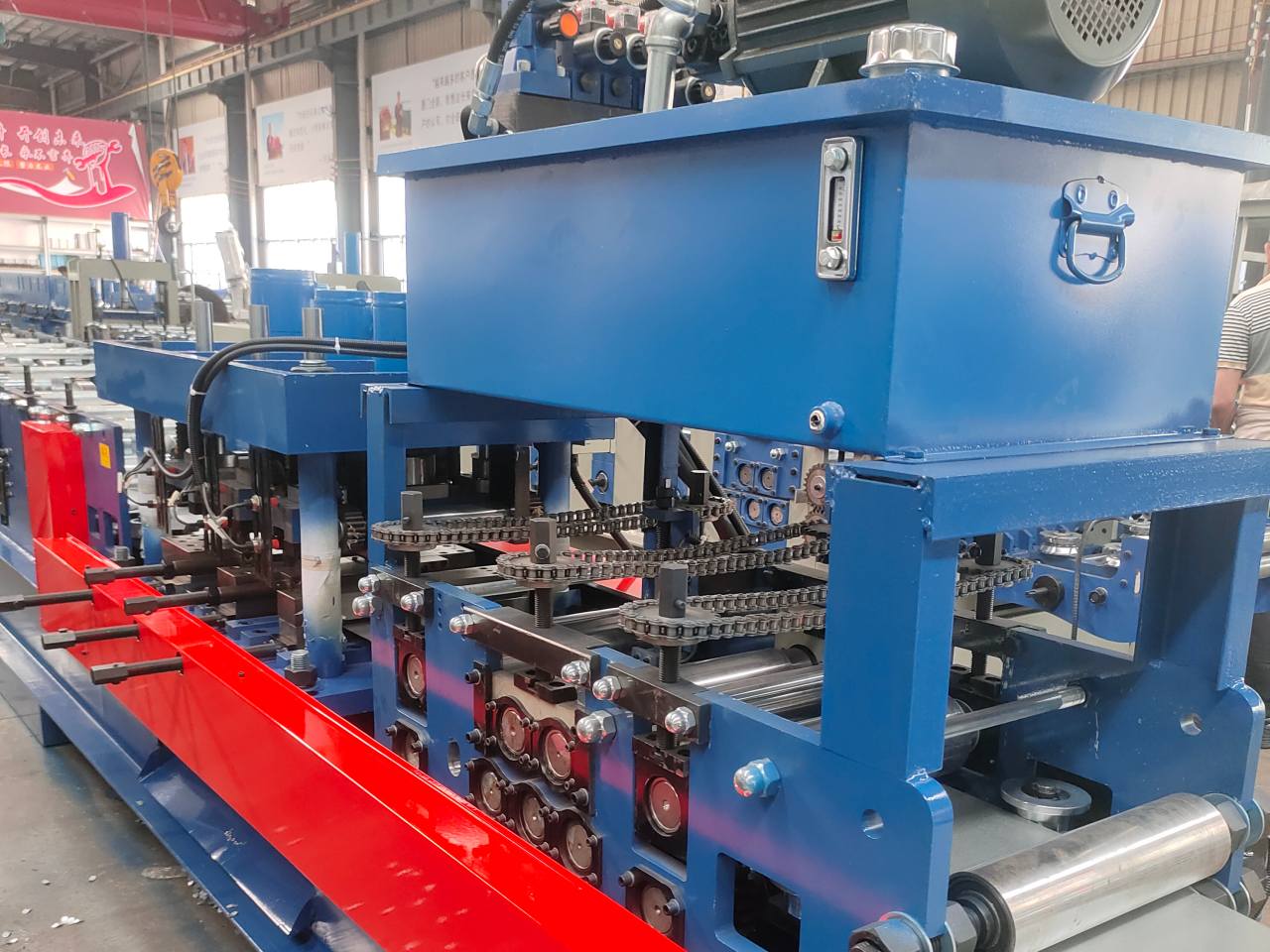

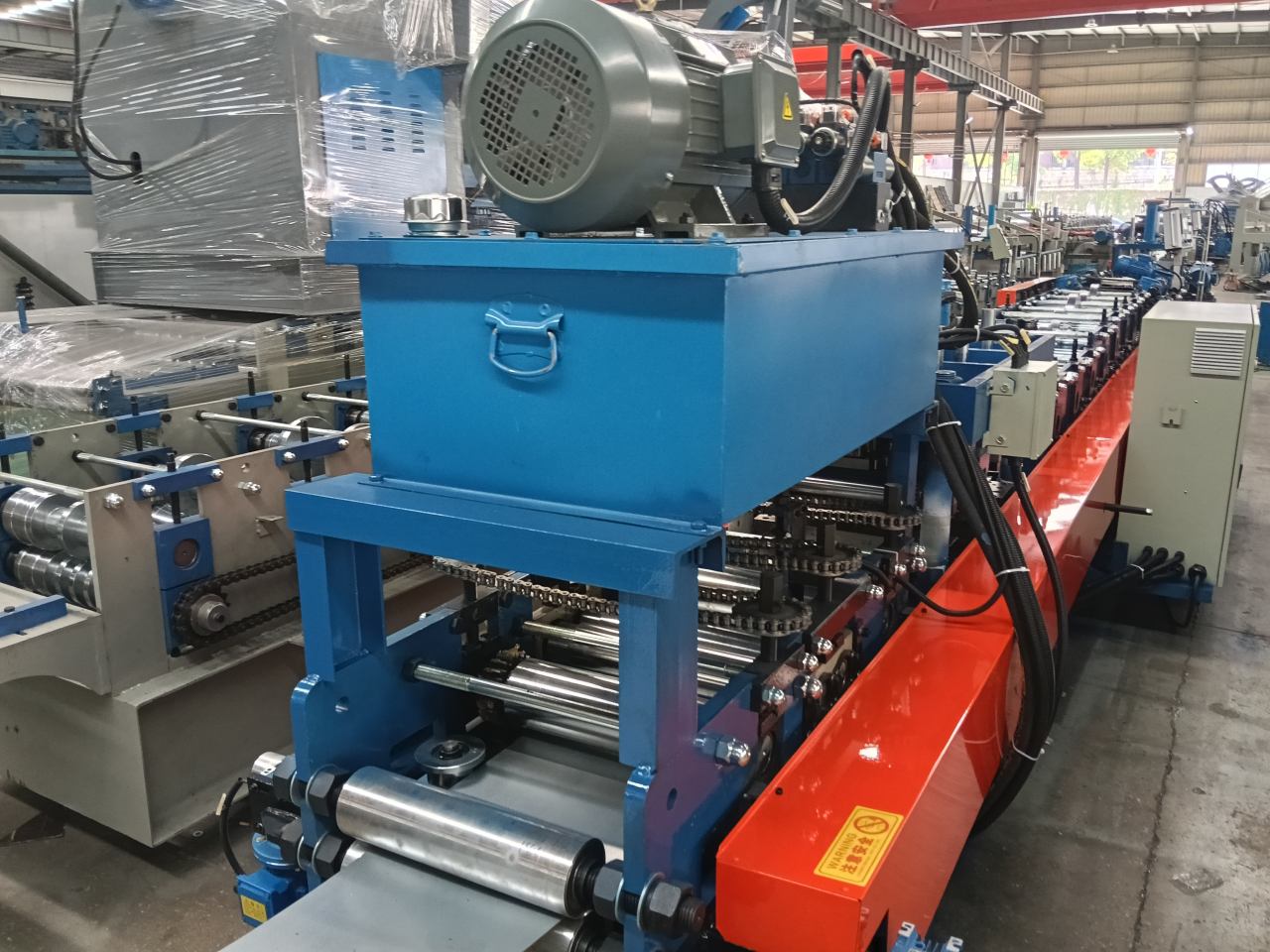

4. Machine Structure and Forming Components

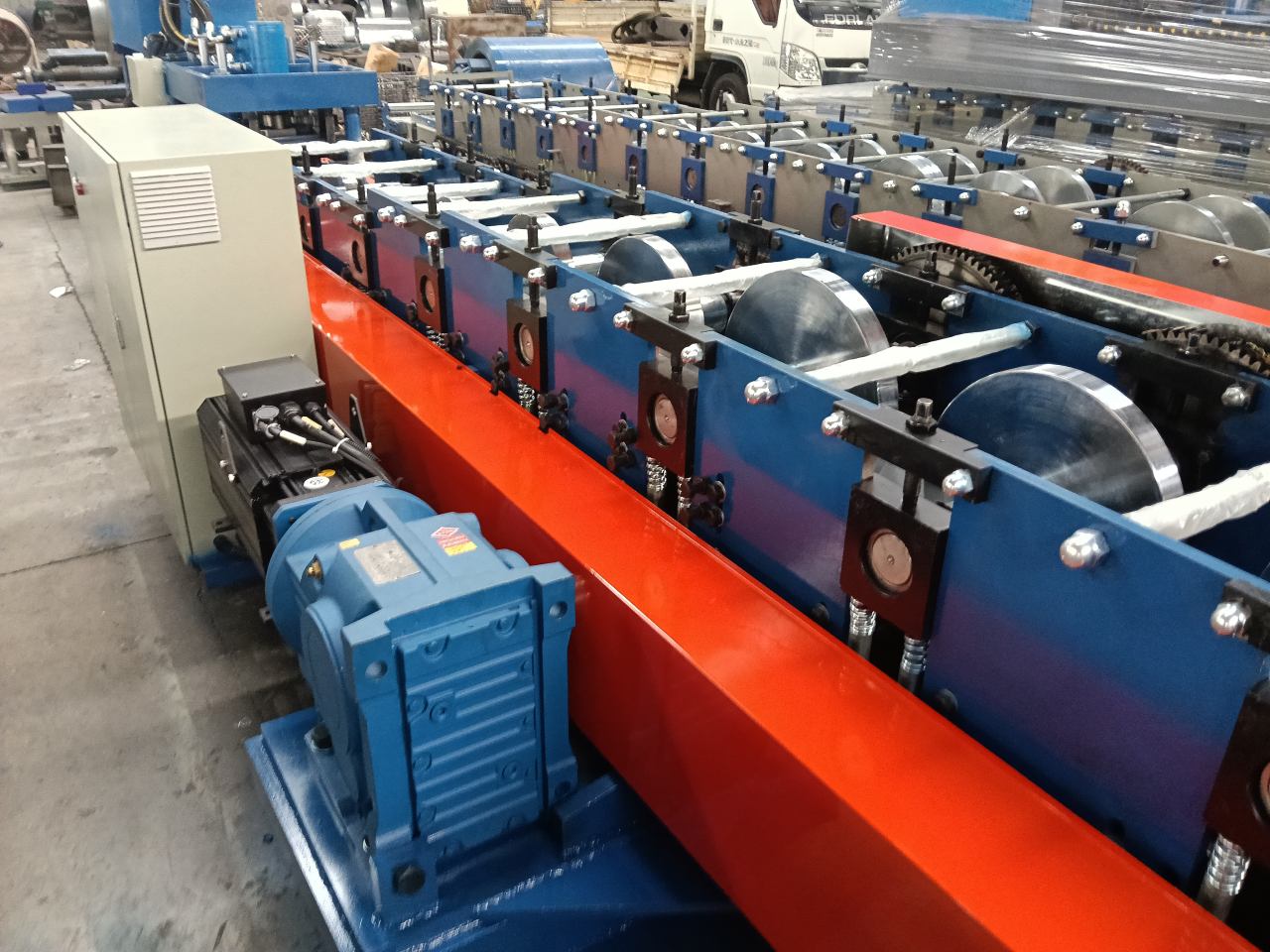

30KW Servo Motor Drive

The machine adopts 22KW servo motor as its main drive. The driving power should be matched to the forming load and required operating speed.

Precision-Machined Shafts

The shafts are made from 45# steel and precision machined. Correct shaft alignment and rigidity help maintain roller positioning during production.

CNC-Machined Rollers

The forming rollers are manufactured from GCr15 steel and machined by CNC lath, with a hard chrome-coated surface. Heat treatment, hardness HRC60-62 and surface quality should be checked against the approved profile design.

Machine Frame

The machine frame structure uses H350 steel base and 30 mm side walls to support the forming stations.

Material Guiding Device

The feeding section includes leading rollers and guiding device, they help the strip enter the forming stations in the correct position. Proper width adjustment function is important for controlling profile symmetry and reducing feeding deviations.

5. Production Speed and Output

The reference forming speed is approximately 25–30 m/min. Actual output capacity depends on the profile length, material properties, punching cycle, cutting method, and material handling. Take 6m long product, normally hole designs, the line speed with hole punching action and cutting action can be about 14-18m/min.

When evaluating a Hat Purlin Roll Forming Machine capacity, ask the supplier to clarify whether the quoted speed refers to linear forming speed or finished-piece output.

A line producing long profiles without complex punching operations may achieve a different output from one producing short components with multiple holes.

For an accurate comparison, request a production trial using the intended material and profile dimensions. Xiamen Thrive will give out honest and real producing line speed with yout hat purlin product datas.

6. Optional Equipment for Hat Purlin Production

Depending on your project, the production line may include:

Hydraulic decoiler for coil feeding

Coil car for heavier material coils

Hydraulic punching device for mounting holes and slots

Hydraulic cutting system for fixed-length profiles

Flying cut-off system for suitable continuous production lines

PLC control system for configured length and batch settings(can specify the main brand)

8m or 12m Long Automatic stacker

The final roll forming machine line sections should be confirmed according to the profile drawing, required output, and workshop layout.

7. How to Choose the Right Hat Purlin Roll Forming Machine

Before requesting a quotation, it is better to collect the following information:

Profile design drawing: Include web width, flange width, lip dimensions, and overall height.

Material Type: Often used material type, thickness range, steel yield strength, and coating requirements.

Punching Shape and Sizes: Mark the hole dimensions, hole distance and position if online punching is required.

Machine LineCapacity: Provide the expected output and clarify whether the line needs continuous cutting or a stop-and-cut process.

Size change requirements: If several profile sizes are needed, confirm the adjustment range and changeover method, automatic PLC change sizes and manual D-spacer type change for saving machine cost.

This information will hope roll forming machines manufacturer determine whether a standard design will suit your needs or whether a custom hat profile roll forming machine is necessary.

8. Why Choose Xiamen Thrive?

Xiamen Thrive provides roll forming equipment configured for customer-specific profile designs and production requirements.

For projects that include hat-shaped purlins or solar mounting profiles, our team will review the profile design drawing, raw material specifications, hole layout and production output required prior to confirming the machine design.

The scope of supply can include forming equipment, compatible punching and cutting systems, PLC controls, and technical support, depending on the agreed configuration. All the sections will be customized according to buyer’s need.

Before production, the technical agreement should clearly state the profile dimensions, material range, production speed, machine functions, and acceptance criteria.

9. Frequently Asked Questions

What is the difference between a top hat roll forming machine and a hat purlin roll forming machine?

Top hat roll forming machine describes equipment by the shape of the finished profile. Hat purlin roll forming machine emphasizes the production of hat-shaped profiles intended for purlin or support applications. The actual profile drawing determines whether the machine is suitable.

Can a hat purlin roll forming machine produce solar mounting profiles?

Yes, if the profile geometry and material requirements are in the design range of the machine. Check the required mounting hole pattern and size, material strength and tolerances before manufacturing.

Can punching and cutting be integrated?

Yes.According to the finished profile design drawing and required production process, compatible punching and cutting systems can be added.

What information is needed for a quotation?

Drawing of profile or sample Material thickness, Steel grade, Coil width, Hole pattern, Expected production output, material yield strength. These details allow the manufacturer to evaluate the tooling and line configuration.

Get a quote for your hat purlin roll forming machine

Need a Top Hat Roll Forming Machine for solar mounting systems or custom steel support profiles?

Send your profile design drawing and material specs to Xiamen Thrive. Our team can review the production requirements and discuss a suitable machine configuration for your project.

Please provide the profile design drawing, material thickness and strength, hole design details and target output when requesting a quote.
