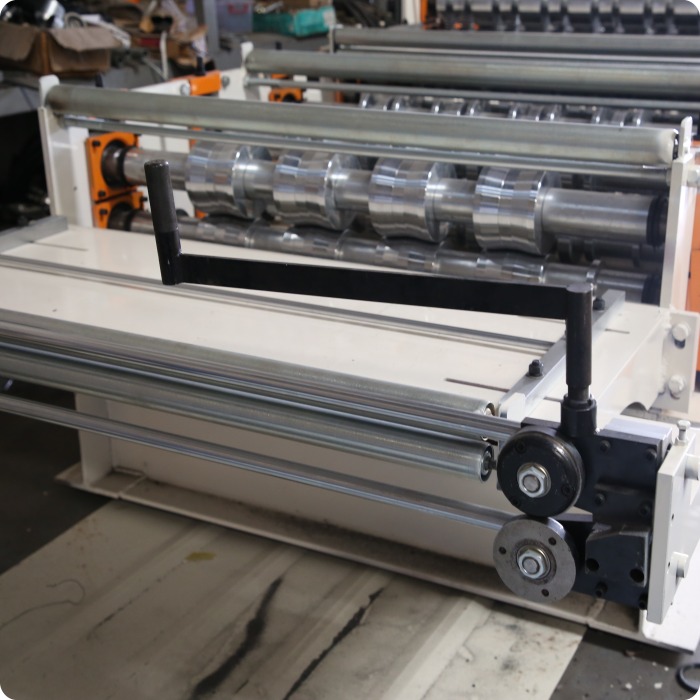

    Roof Tile Double Layer Roof Roll Forming Machine
    Roof Tile Double Layer Roof Roll Forming Machine
  • Roof Tile Double Layer Roof Roll Forming Machine
  • Roof Tile Double Layer Roof Roll Forming Machine
  • Roof Tile Double Layer Roof Roll Forming Machine
  • Roof Tile Double Layer Roof Roll Forming Machine
  • Roof Tile Double Layer Roof Roll Forming MachineRoof Tile Double Layer Roof Roll Forming MachineRoof Tile Double Layer Roof Roll Forming MachineRoof Tile Double Layer Roof Roll Forming Machine

    Roof Tile Double Layer Roof Roll Forming Machine

    This double layer roof forming machine is for roof tile and trapezoidal roof processing, the upper layer is for 1220mm feeding width step tile sheet and bottom layer for traditional trapezoidal sheet. Customize manufacturing roll forming machines according to user's profile design drawing is available, too.
        Driving Motor: 11KW
        Forming Steps: 18/20 steps
        Working Speed: 20-25m/min
        Thickness for Steel: 0.3-0.7mm
        Shaft Diameter: 75mm
        Constrol System: PLC

    Roof Tile Double Layer Roof Roll Forming Machine

    Our double layer roof forming machine has a long service life, simple operation and easy to use, we provide network after-sales service for life. If you need, we can send an engineer to come to your factory for teaching. A strong behind-the-scenes team makes your roll forming machine purchase worry-free.





    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor  11KW
    Hydraulic Press/Cutting Motor 4KW
    Forming Steps 18/20
    Working Speed 20-25m/min
    Material Width 1220mm
    Thickness for Steel 0.3-0.7mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material 45# steel with polished and heat treatment (base on raw material type)
    PLC Cabinet Schneider, Mitsubishi or Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G245-345, Aluminum
    Painted Color Blue+Gray White Or Customization
    Overall Size 10800*1600*1600mm
    Weight 7500KGS



    Machine Main Features

    The double layer roof forming machine integrates an automatic de-coiler feeding guide, roll forming unit, and PLC-controlled hydraulic cutter to efficiently transform steel coils into dual-profile roof sheets. This innovative system simultaneously processes two distinct layers: the upper layer molds durable tile roof sheets, while the bottom layer forms sturdy trapezoidal roofs, ensuring structural versatility and enhanced load-bearing capacity.

    Equipped with precision PLC automation, the double layer roof forming machine guarantees consistent product quality, high-speed production, and seamless material feeding/cutting. Its hydraulic cutter enables accurate length customization, minimizing waste. The robust roll forming unit supports adjustable molds, allowing quick profile changes for diverse architectural demands.

    Optimized for saving machine layout space, the double layer roof forming machine reduces labor costs and factory space by producing two layers in a single pass. Ideal for industrial and commercial roofing projects, it combines durability, adaptability, and automation to deliver superior double-layer roofing solutions.

     PLC double deck forming machine


     Hydraulic Cutting System


    Hydraulic pump station: 4KW

    Type: Double guide pillar Hydraulic Cutting

    Blade: Cr12Mov, HRC 58-62


    double layer roof forming machine
