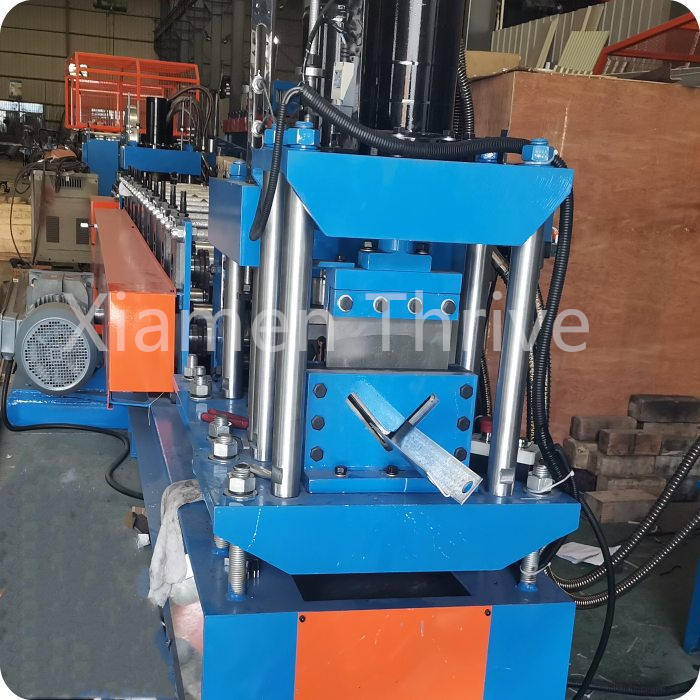

Galvanized Steel Rack Shelf Making Machine

Galvanized Steel Rack Shelf Making Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	11KW
Hydraulic Cutting Motor	7.5KW
Forming Steps	10
Working Speed	12-15m/min(no punching action speed)
Material Width	Adjustable
Thickness for Steel	1.6-4.0mm
Shaft Diameter	75mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	8200*1050*1550mm
Weight	5300KGS

• 1.

  2.  There are several hydraulic valves for hydraulic control system on this Galvanized Steel Rack Shelf Making Machine, these valves are keeping hydraulic actions work well. We can check the hydraulic system is working normally or not by reading the meter.

  3. This Galvanized Steel Rack Shelf Making Machine is for producing 4mm galvanized steel sheet, so we choose Cr12 as rollers material, Cr12 material is harder than 45# steel, so it is good for ensuring producing line's working life, less scratching less crack on rollers.

  4. The material width range of 60mm to 200mm further underscores the machine's adaptability, catering to a wide spectrum of shelf designs and configurations. Whether it's narrow shelves for compact storage or wide shelves for bulky items, this machine has the capability to meet diverse requirements with ease.

  5. The Galvanized Steel Rack Shelf Making Machine is highly integrated by uncoiling, leveling, forming, cutting off, punching.
     The whole production line is controlled by PCL program. Operators can select a preset program to run the whole line automatically by using touch screen. The methods of operation include automatic control, manual control, separate operation and emergency stop.
