    Warehouse Shelving Racking Beam Roll Forming Machine
    Warehouse Shelving Racking Beam Roll Forming Machine
  • Warehouse Shelving Racking Beam Roll Forming Machine
  • Warehouse Shelving Racking Beam Roll Forming Machine
  • Warehouse Shelving Racking Beam Roll Forming Machine
    • Warehouse Shelving Racking Beam Roll Forming MachineWarehouse Shelving Racking Beam Roll Forming MachineWarehouse Shelving Racking Beam Roll Forming Machine

    Warehouse Shelving Racking Beam Roll Forming Machine

    One of the standout features of our Upright Shelves Storage Rack Roll Forming Machine is servo punching. This strategic choice significantly enhances cutting precision, elevating the machine's performance to new heights. With each punch precisely calibrated and executed, errors are minimized, and the integrity of the formed components is upheld to the highest standard.

        Forming Station: 20 steps

        Transmitting Type: Gearbox Driving

        Driving Motor: 18.5KW*2

        With Powful Leveling Device

        Servo Motor Feeding & Punching

        Punching Machine Punch Holes

    INQUIRY NOW
    PRODUCT CATEGORY
    New Products
    DESCRIPTION

    Warehouse Shelving Racking Beam Roll Forming Machine

    Roll Forming Machine Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 18.5*2KW
    Hydraulic Cuting Motor 7.5KW
    Forming Steps 20
    Working Speed 4-6m/min(servo punching, servo cutting speed)
    Material Width Adjustable
    Thickness for Steel 2-3mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material GCr15 and heat treatment (base on raw material type)
    PLC Cabinet Schneider, Mitsubishi or Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cutting Blade Material Cr12MoV
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G245-345
    Painted Color Blue+Gray White Or Customization
    Overall Size 10500*1050*1550mm
    Weight 15500KGS
            Rack Upright Making Machine

      1.  One of the standout features of our Upright Shelves Storage Rack Roll Forming Machine is servo punching. This strategic choice significantly enhances cutting precision, elevating the machine's performance to new heights. With each punch precisely calibrated and executed, errors are minimized, and the integrity of the formed components is upheld to the highest standard.

        In our relentless pursuit of efficiency, we have implemented a flying cutting model of the shelf storage rack roll forming lines. This innovative approach maximizes line speed, allowing for rapid production without sacrificing quality. By seamlessly integrating precision cutting into the workflow, we have streamlined the manufacturing process, empowering our clients to meet the demands of today's fast-paced markets.

        The machine frame, a critical component of any roll forming system, This line is standing pillar type design. Reinforcing ribs have been strategically added in the middle, enhancing structural integrity and ensuring stability even under the most demanding operating conditions. This robust construction not only prolongs the lifespan of the machine but also enhances safety, providing operators with peace of mind throughout the production cycle.

        Driving the performance of our Upright Shelves Storage Rack Roll Forming Machine is a gearbox system of unparalleled reliability. With a gearbox model of 180T, this powerhouse of precision delivers the torque and efficiency needed to tackle even the most challenging materials with ease. Whether forming steel, aluminum, or other alloys, our machine rises to the occasion, consistently delivering superior results.

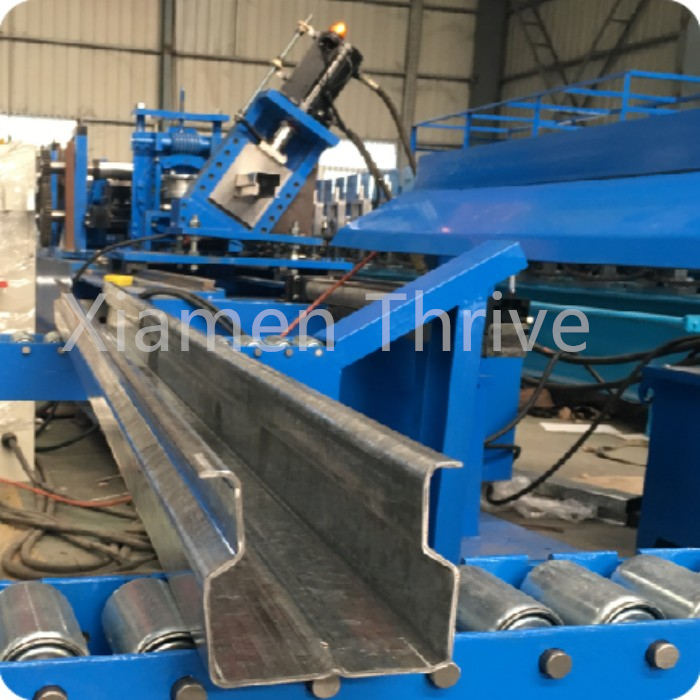

      2. Pallet Rack Roll Forming Machine
