Model:V24
Forming Station: 16 steps
Main Motor: 7.5KW
Hydraulic Motor: 4KW
The Steel Ridge Cap Roll Forming Machine from Thrive is for producing high-quality ridge caps with precision and efficiency. This ridge cap machine can meet the modern roofing industry application requirements.
Items |
Parameter |
Material Thickness |
0.3-0.5mm |
Forming Steps |
16 steps |
Roller Material |
45# steel, coated with chrome |
Driving Motor |
7.5KW |
Hydraulic Cutting Power |
4KW |
Hydraulic Pressure |
8-12MPa |
Power Supply |
380V/50HZ/3Ph (can be specified by user) |
Cutting Type |
Hydraulic cutting, stop to cut |
Tolerance |
±2mm |
Material of Cutting Tool |
Cr12 |
Control System |
PLC with touch screen |
Machine Dimension |
10800*1550*1650mm |
Machine Net Weight |
6.5Tons |
High-Performance 3Ton*600mm Un-coil Rack
The machine is equipped with a 3Ton*600mm un-coil rack that accommodates a coil inner diameter of 508mm, ensuring seamless material feeding. With a load capacity of up to 3.0 tons and a coiler width of 600mm, this component is essential for handling pre-painted coils and galvanized coils, ranging from 0.3mm to 0.6mm in thickness.
Precision Cold Rolling Mills
The cold rolling mills feature a feeding section with a guide system and a gear/sprocket-driven mechanism for smooth operation. With 16 forming steps, the ridge cap roll former is engineered with rollers manufactured from 45# steel, processed on CNC lathes, and coated with hard chrome for enhanced durability. The shafts, with a diameter of 75mm, are precision machined to ensure consistent and accurate ridge cap formation.

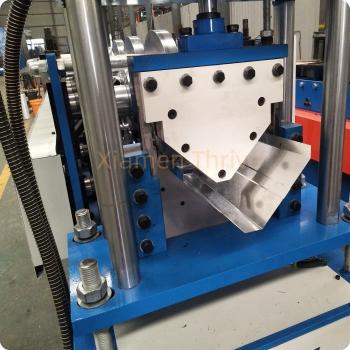

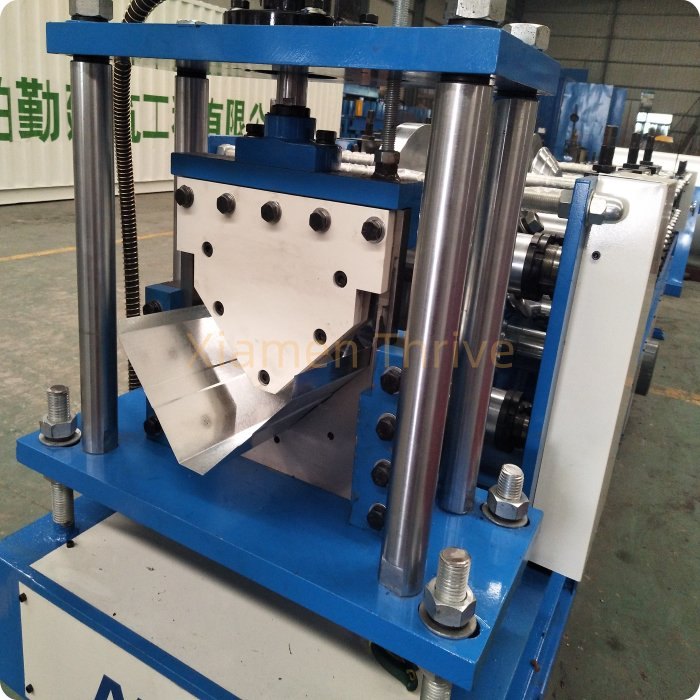

Efficient Forming and Cutting
The ridge forming machine operates at a forming speed of 15-18 meters per minute, driven by a 7.5 KW main motor with frequency speed control for optimal performance. The hydraulic pressing/cutting device includes a 4KW pump motor and delivers a maximum cutting pressure of 12Mpa. The cutting tool, made from Cr12 material and heat-treated, ensures clean and precise cuts, enhancing the overall quality of the finished metal ridge caps.
Advanced PLC Control System
The PLC control system automates the process, managing the control of length, quantity, and cutting with precision. The system includes a combination of PLC, inverter, touch screen, and encoder, allowing for easy operation and accurate production of ridge caps.
This metal ridge cap roll forming machine from Thrive is your correct choice for manufacturers who are seeking a reliable and high-quality solution for ridge cap production. With its advanced features and reliable design, it is the star of ridge cap forming machine in the market.
