Main Motor: 2.2KW
Forming Station: 8 station
Min. Material Width: 250mm
Max. Material Width: 600mm
Effective Width: 200-530mm
Suitable Material: Aluminum sheet, galvanized sheet
Cutting Blade Material: Cr12MoV
| Parameters | Specification |
| Voltage | 380V/50HZ/3PH |
| Driving Motor | 2.2KW |
| Hydraulic Press/Cuting Motor | 2.2KW |
| Forming Steps | 8 |
| Working Speed | 15-25m/min |
| Material Width | 250-600mm |
| Thickness for Steel | 0.5-0.8mm |
| Shaft Diameter | 75mm |
| Shaft Material | High grade 45# forged steel |
| Roller Material | 45# steel with polished and heat treatment |
| PLC Cabinet | Schneider, Mitsubishi or Delta |
| Encoder | Omron |
| Sprocket Wheel | 45 steel high-frequencies quench |
| Cutting Blade Material | Cr12 steel |
| Machine Frame Material | Fine welded structural steel; |
| Roofing Material | PPGI, GI steel G245-345, aluminum sheet |
| Painted Color | Blue+Gray White Or Customization |
| Overall Size | 4200*820*1100mm |
| Weight | 1200KGS |

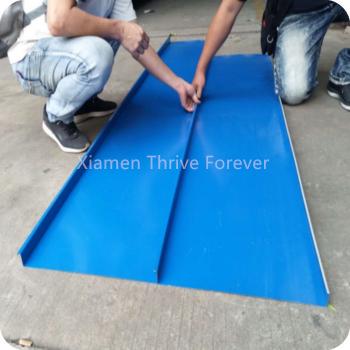

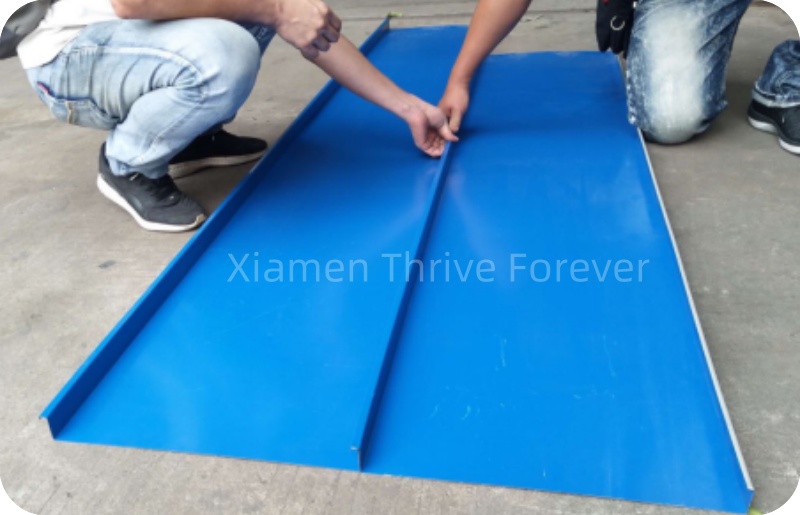

Standing Seam Roof Design & Sample Pictures

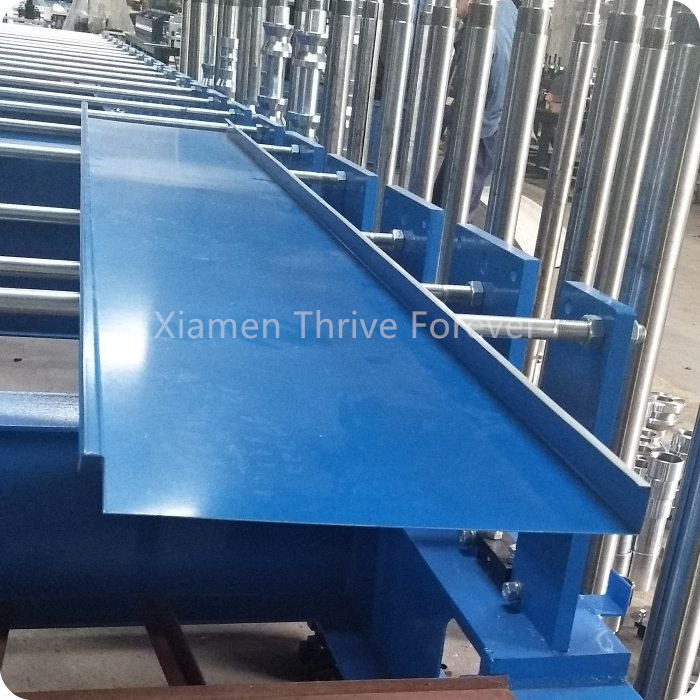

The small portable standing seam roof roll forming machine is a versatile and compact device designed to produce standing seam metal roofs of various widths at the same height. Its size can be adjusted to accommodate different roofing needs, making it a flexible solution for different projects. This machine is easy to transport as it can be placed in a container and taken to the job site for on-site production. Its portability and efficiency make it a convenient and practical choice for roofing projects.
The hydraulic cutting is universal cutting, see below picture it is can cut for any standing seam roof width.
