High Quality Roof Panel Roll Forming Machine 20 Station Forming

High Quality Roof Panel Roll Forming Machine 20 Station Forming

This YX29-200-1000 roll forming machine for roof sheet has film laminated function, see the marked out roller above, this part is for installing film laminated device for steel roof sheet. We are the factory who is good at Customized manufacture Sheet Metal Roll Forming Machines, below trapezoidal metal sheet roof roll forming machine adopts stand pillar machine frame type, compare to traditional machine frame, it is good for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole trapezoidal roof sheet roll forming machine with stand pillar machine frame looks more beautiful.

Forming Station: 20 steps
Driving Motor: 11KW
Hydraulic Motor: 4KW
Forming Speed: 18-25m/min
Suitable Material Thickness: 0.3-0.7mm
Effective Width:1000mm
Coil Width for this profiles:1220mm
Pre-painting steel,galvanized sheet, Tension Grade: Q235MPa

INQUIRY NOW

PRODUCT CATEGORY

New Products

DESCRIPTION

High Quality Roof Panel Roll Forming Machine 20 Station Forming

Profile Design Drawing

Raw Material Basic Information

Thickness: 0.3-0.7mm

0.5mm thickness is for inspection, common use

Effective Width:1000mm

Coil Width for this profiles:1220mm

Pre-painting steel,galvanized sheet, Tension Grade: Q235MPa

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	11KW
Hydraulic Press/Cuting Motor	4KW
Forming Steps	20
Working Speed	15-25m/min
Material Width	1220mm
Thickness for Steel	0.3-0.7mm
Shaft Diameter	75mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12 steel
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345, Aluminum
Painted Color	Blue+Gray White Or Customization
Overall Size	1050016001600mm
Weight	4500KGS

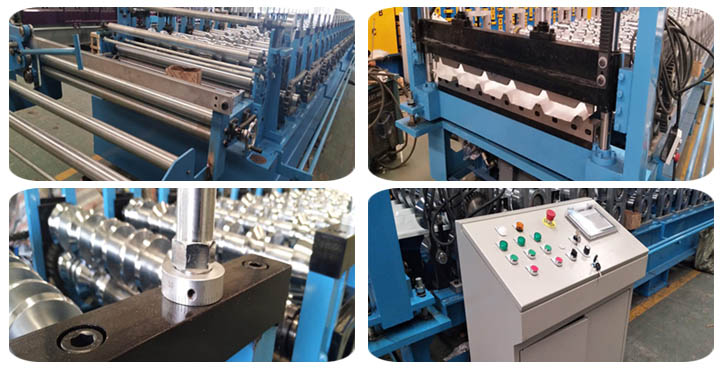

Roof Panel Roll Forming Machine Details

All the roll forming rollers are machined by CNC lathe, then fine polished, so full set metal sheet roof roll forming machine rollers are shinning and looks at mirror. On each station, we have installed dials for reading, when we change to produce another different thickness of raw material, we can adjust these dials into corresponding reading, it is convenent and easy working after intalling these dials on each stations' two sides.

Normally, one set metal sheet roof roll forming machine will have on PLC control box, there is touch screen, inverter inside,all the working actions are controlled here, such as cutting off, speed adjusting,stop and start the producing line. The hydraulic motor is for controlling cutting off action,there is oil tank inside machine frame also, it can save space in factory site.
