Corrugated Iron Sheet Making Machine
Engineer Parameters
Machine Component
Specification
5 Tons Hydraulic De-coiler
Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm;
Taper wedge expanding system, hydraulic expending coil hole
Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm;
Roll Forming Machine
Gear/Sprocket driving; 22 stations roll forming

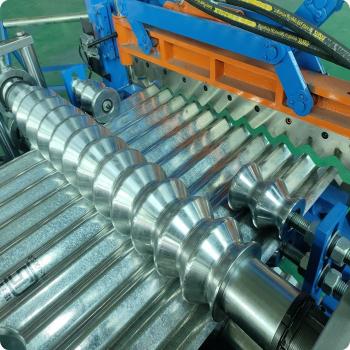

Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
Shafts Diameter=ф75/90mm, Precision Machined, fine Polished
Main motor =11KW, Frequency speed control
Max Line speed of roll Former: Approx.18-20m/min
Hydraulic Cutting Device
Stop to cut, no slug cutting
Cutting tool material: Cr12, Heat treatment
Hydraulic unit, Pump motor =3KW
PLC Control System
Control the quantity & cutting length, step tile length automatically
Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
Cut-to-length tolerance≤±2mm
24V Control voltage
Controller with forward/backward/emergency stop buttons
Product Rack
Unpowered, 3 units
Corrugated Sheet Sample
Machine Features
The flowchart of this Corrugated Iron Sheet Making Machine is as below, whole producing line combines with hydraulic unc-coiler, roll forming machine with manual pre-shear and leading rollers, hydraulic cutting device, product rack and PLC control box.
This is high quality standard manufacturer machine, this Corrugated Iron Sheet Making Machine frame is made from casting iron, we call them stand pillar type, all the parts are two times precise machined, and the encoder rollers are steel material, it is better quality and long term working life. Total roll forming machine rollers are formed by 22 steps, and all shafts are solid, the diameter is 75/90mm. This strong structure is good for roll forming 550MPa steel coil, no broken rollers and beautiful corrugated sheet will be processed.
Different corrugated roof sheet design, different Corrugated Iron Sheet Making Machine price, win-win business is long term business, we only supply high quality roll forming machines and long-term working life machines. No mater traditional design or new customized roof design, we can be personal making suitable corrugated iron sheet making machine as you need. Contact with us for more information.
