Aluminium Metal Door Frame Window Frame Making Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	5.5KW
Hydraulic Cuting Motor	3KW
Forming Steps	16
Working Speed	15-25m/min
Material Width	183mm
Thickness for Steel	0.6-1.0mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6500*1350*1550mm
Weight	2600KGS

• Rollers Layout

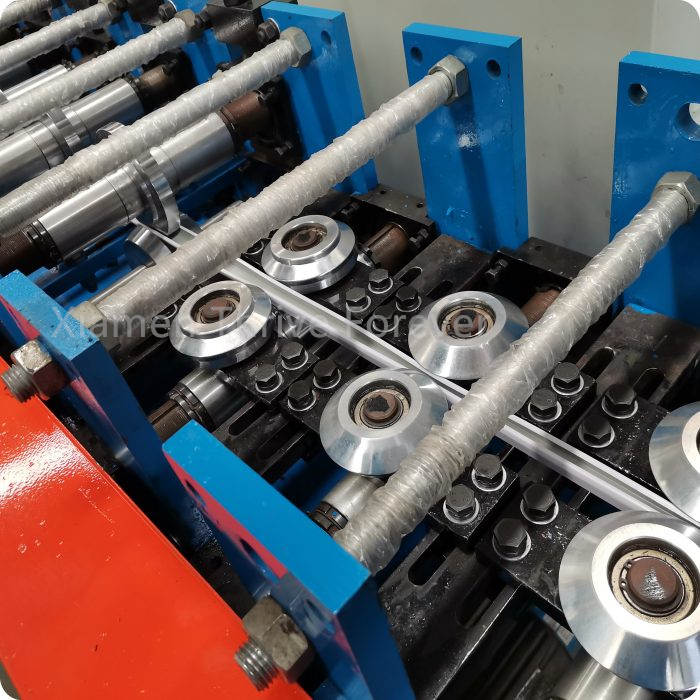

1. The heart of this window frame making machine lies in its rollers layout, strategically designed to accommodate the unique characteristics of aluminium. Each roller plays a crucial role in roll forming the raw material into precise door and window frame components. Careful attention is paid to the spacing, angles, and configurations of the rollers to ensure uniform shaping and minimal distortion of the aluminium sheets. By leveraging the inherent properties of the material, the machine achieves unparalleled precision in every component it produces.

   Meticulous Forming Process

2.
   The forming process is where artistry meets engineering. With aluminium's softer nature in mind, the Aluminium Metal Door Frame Window Frame Making Machine employs a delicate yet robust approach to shaping the material. Through a series of carefully orchestrated movements, the machine gently guides the aluminium sheets through the rollers, gradually forming them into seamless door and window frame profiles. This meticulous process ensures that each component maintains its structural integrity while meeting the highest standards of dimensional accuracy and surface finish.


3.

4. The Aluminium Metal Door Frame Window Frame Making Machine redefines the standards of aluminium frame manufacturing. With its thoughtful design, precision rollers layout, and unwavering commitment to quality, it stands as a testament to the marriage of technology and craftsmanship. By understanding and embracing the unique properties of aluminium, this machine empowers builders and architects to create structures that are not only functional but also beautiful, setting new benchmarks for excellence in architectural design and construction.
