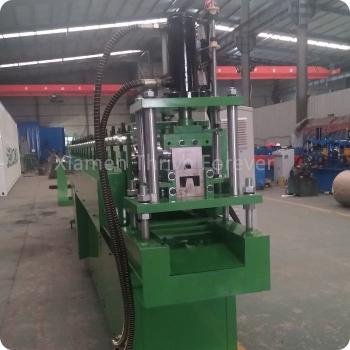

Drywall Metal Stud Light Keel C Channel Steel Roll Forming Machine

Roll Forming Machine Technical Parameter

Parameters	Specification
Voltage	380V/50HZ/3PH or customized
Driving Motor	5.5KW
Hydraulic Cuting Motor	3KW
Forming Steps	14
Working Speed	15-25m/min
Material Width	135mm
Thickness for Steel	0.4-0.8mm
Shaft Diameter	65mm
Shaft Material	High grade 45# forged steel
Roller Material	45# steel with polished and heat treatment (base on raw material type)
PLC Cabinet	Schneider, Mitsubishi or Delta
Encoder	Omron
Sprocket Wheel	45 steel high-frequencies quench
Cutting Blade Material	Cr12MoV
Machine Frame Material	Fine welded structural steel;
Roofing Material	PPGI, GI steel G245-345
Painted Color	Blue+Gray White Or Customization
Overall Size	6500*1350*1550mm
Weight	2500KGS

• Feeding Section with Guider

1. At the beginning of this machine lies a meticulously crafted feeding section, complete with a guider mechanism. If the material feeding width is a little different, the feeding guider can be adjusted according to actual material width. This component serves as the initial point of contact for raw materials, ensuring seamless entry into the forming process. With precision-guided feeding, material alignment is impeccable, laying the foundation for flawless fabrication.




2. Gear/Sprocket Driving Mechanism

   The sophisticated gear/sprocket system drive each stations work at same speed, and push all 14 steps to form the coveted C-channel steel. This meticulously calibrated mechanism guarantees synchronized movement throughout the forming process, culminating in impeccable results.




3. Precision Machined Shafts

   All the shafts should be precision manufacture at a diameter of ф65mm, these shafts undergo meticulous machining to achieve unparalleled accuracy. Their precision-engineered design ensures stability and reliability, vital traits in the demanding world of construction.
