Standing Seam Metal Roofing Machines

Standing Seam Metal Roofing Machines

Standing Seam Metal Roofing Machines Classifications

Normally, standing seam metal roofing machines will be sorted base on portability, automation and functional design to accommodate diverse construction needs.

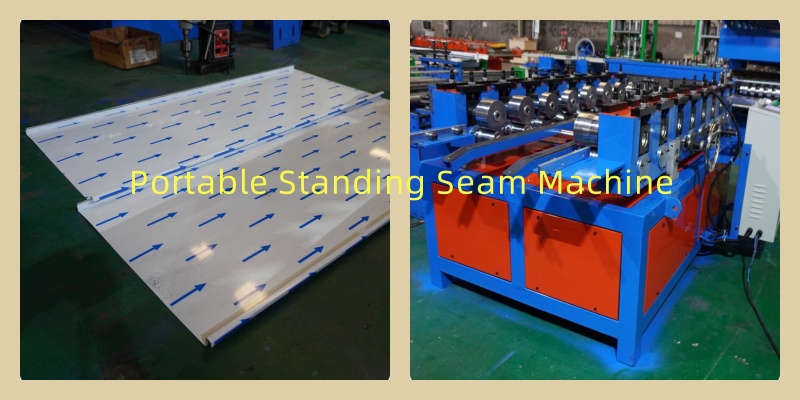

By Portability: Portable models, such as the Portable Roll Forming Machine for Standing Seam Roof and Movable Standing Seam System Snap Lock Roofing Machine, are designed for job-site working, it is good for saving human cost and shortening project working period. These machines are small and lightweight (800–1000 kg). So, compare to ordinary metal roofing machines, Bemo Standing Seam Roofing System Forming Machine increases higher production capacity well for large-scale commercial or industrial roofing.

By Automation Level: Low budget buyers may require manual type standing seam metal roofing machines, such as the manual type changing standing seam roll forming machine, Manual Adjusting Curving Machine. But our poplar styles are automatic roll forming machines. Machine manufacturer integrates PLC control systems with standing seam metal roofing machines, such as the cutting length, forming speed and hydraulic cutting actions will be controlled automatically, producing line speed can be up to 20 m/min.

By Panel Type: Different standing seam roof machines are designed for producing specific profiles, such as Snap Lock, Standing Seam Roof, and clip-based concealed fixing systems. For example, Snap Lock Standing Seam Metal Roofing Machines are special for interlocking panel designs, and Bemo Style standing seam roof machines specialize in European-style standing seam profiles.

By Size Changing Type: Some standing seam metal roofing machines covered width are fixed, some are interchangeable, so we call size interchangeable standing seam metal roofing machine sometimes.

Standing Seam Roofing Systems’ Advantages in Metal Roofing

Standing seam roof systems are popular for their structural integrity and performance, there are distinct benefits to compare to traditional roofing:

Waterproofing and Leak Resistance: After metal roofing roll formed by standing seam roll forming machine, water penetration sites will be decreased by the interlocking design, we don't need exposed fasteners during installation. By good effect of mechanically 180 degree or 360 degree locked seams, a continuous, weathertight barrier is produced.

Durability and Weather Resistance: Metal roofing system which is built from steel, aluminum, or titanium-zinc alloys (0.4 to 1.2 mm thick), these types of raw material are resistant to corrosion, severe winds, and extremely high temperatures (-50°C to 120°C). PVDF-coated metal roof can retain their color about 15–20 years.

Thermal Expansion Accommodation: Thanks to the clip lock designs, roof panels can expand and contract in response to temperature variations, the design system will guard metal roofing system against damage from stress. For large-span roofs, they are easy for effect by thermal movement, this flexibility performance is essential.

Aesthetic and Design Versatility: In order to fit architectural designs, standing seam roof panels can be bent into convex or concave curves (minimum radius: 1.2 m for aluminum, 3 m for steel). Additionally, rib heights (25 mm, 38 mm, and 65 mm) improve drainage efficiency and aesthetic appeal. So good effect standing seam roof machine can sovle many metal roofing system problems.

Auxiliary Equipment for Standing Seam Roof Machines

With specialized auxiliary equipment and systems, the standing seam roofs can be produced and installed more quickly:

Core Production Equipment: Un-coilers (manual or hydraulic) feed metal coils into the roll forming line, while the main roll forming section forms the shapes and automatic cutting device cuts roof panels into the required length. Hydraulic systems and PLC control system are the main control system for this type of roll forming machines.

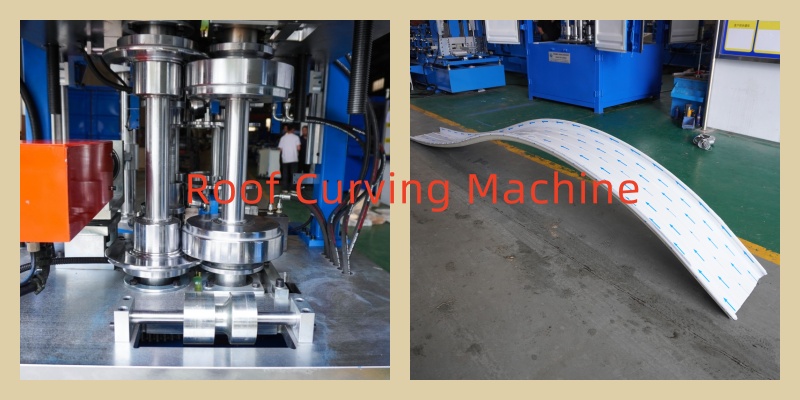

On-Site Fabrication Tools: Portable curving machines enable on-site bending panels to fit architectural curves, with minimum radius adjustable for aluminum sheet min. 1.5m convex curving and steel sheet max. 3m convex curving. Automatic electric seamers or manual seamers can lock the roof sheets well during installation.

Installation Accessories: Specialized tools include standing seam notchers, steel roof shear, and eave/valley hemmers for precision edge finishing. Clamps or brackets can be attached to accessories like snow guards or solar mounts without penetrating the roof membrane.

Quality Control Systems: Mechanical test reports and video inspections can verify critical parameters: such as forming accuracy and material thickness, this is ensuring roof panel suits well to project specifications.

In summary, due to long-term performance and aesthetic benefits of standing seam metal roof machines, the standing seam metal roof system continues to grow in both residential and commercial construction.
