Introduction to Xiamen Thrive's Rolling Shutter Machines

Xiamen Thrive is a leading manufacturer of advanced rolling shutter and grille production machines, designed to create compact, space-efficient doors for residential, commercial, and industrial use. Our rolling shutter machines produce doors that require minimal headroom, rolling up neatly behind lintels without occupying valuable ceiling or side space. Catering to diverse needs—from basic security shutters to high-performance fireproof, storm-resistant, and rapid-operating models—we offer tailored solutions. Clients can submit custom designs for our engineers to refine, ensuring optimal functionality and quality. With a focus on strength and safety, our machines produce shutters using robust steel (adjustable thickness) to enhance theft and fire protection, ideal for garages, shops, warehouses, and more.



Technical Expertise & Customization

Xiamen Thrive's rolling shutter machines integrate cutting-edge technology, including servo motors and PLC systems (Delta/Simens), enabling speeds of 25–30 meters per minute. Features like no-stop tracking cutting and automatic feeding streamline production, while manual override options ensure reliability during power outages. Our 2-in-1 machines combine multiple profiles in a single line, supporting slat widths from 35mm (for windows) to 150mm (for industrial doors). Customizable designs accommodate galvanized steel (GI/PPGI), stainless steel (SS), and insulated polyurethane foam cores, balancing durability with thermal efficiency. Whether crafting noise-resistant automatic shutters or heavy-duty sectional doors, our machines deliver precision, speed, and adaptability to meet global client specifications.



Applications & Material Versatility

Steel roller shutters produced by Xiamen Thrive's machines are versatile solutions for security, privacy, and climate control. Suitable for storefronts, factories, backyards, and garages, they offer silent, automated operation with reinforced protection. Materials like galvanized steel ensure corrosion resistance, while foam-filled slats enhance insulation. Our range includes cost-effective GI/PPGI for standard applications and premium SS for harsh environments. By adjusting slat profiles, thickness, and coatings, we cater to diverse regional and functional demands—from storm-prone areas requiring impact-resistant shutters to fire-sensitive facilities needing UL-certified barriers. Trusted globally, Xiamen Thrive empowers businesses with machines that blend innovation, safety, and efficiency, backed by 24/7 technical support and turnkey production solutions.



Different Type of Roller Shutter Machines

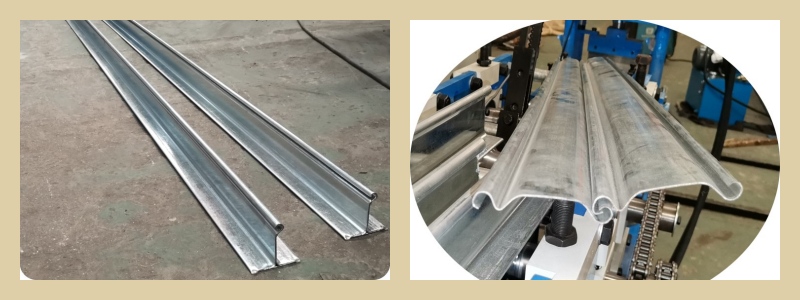

Australian Rolling Shutters Machine

Australian steel roller doors are renowned for their easy installation, low-noise operation, and aesthetic versatility, combining functionality with sleek design. These shutters can be effortlessly lifted manually or automated, featuring smooth, horizontal embossed surfaces and vibrant color options for enhanced curb appeal. Ideal for residential and commercial use, they prioritize durability and rapid deployment, significantly reducing construction time. Stainless steel variants offer superior corrosion resistance while maintaining landscape harmony and ventilation efficiency. Their robust structure ensures strong anti-theft isolation, making them perfect for securing storefronts, garages, and industrial sites. Xiamen Thrive’s machines produce these high-performance shutters with precision, emphasizing lightweight yet sturdy materials for seamless integration into Australian architectural standards.



Grill Rolling Shutters & Bottom Plate Machines

Grill rolling shutters merge high-security with aesthetic transparency, ideal for commercial interiors. Their tight coil patterns and customizable designs (e.g., brick bond, in-line styles, or solid slats) allow optimal light transmission and visibility without compromising safety. Popular as window security grilles, they deter intrusions while maintaining airflow. Xiamen Thrive tailors machines to produce diverse grill patterns per client specifications.

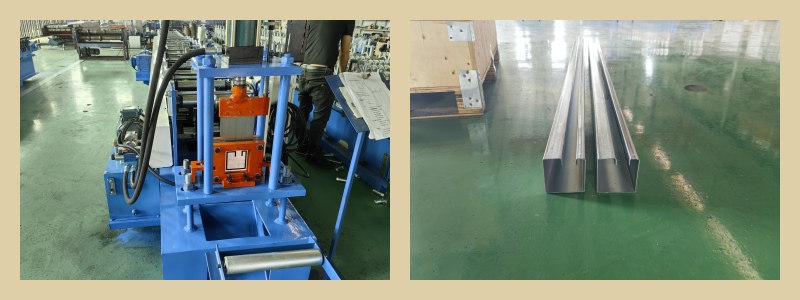

Complementing these, the Bottom Plate Roll Forming Machine crafts critical components like T Block bottom plates, which seal shutters against wind-driven rain and debris. These plates enhance structural integrity and weather resistance, ensuring long-term reliability. Our machines support multiple bottom plate models, prioritizing precision and durability for seamless integration with rolling shutter systems.



Aluminum Window Sill Roll Forming Machine

Aluminum window sills engineered by Xiamen Thrive's roll forming machines prevent moisture infiltration, leaks, and staining by channeling rainwater away from windows. Featuring a distinctive rounded-edge design, these sills are corrosion-resistant and lightweight, designed to integrate seamlessly into window openings during installation. Their sleek profile enhances building aesthetics while providing functional protection against environmental damage. Suitable for residential and commercial projects, our machines produce sills with exacting tolerances, ensuring compatibility with various window systems and contributing to energy-efficient, weatherproof structures.



Shutter Door Forming Machines Raw Data



Material: Galvanized Coil

Material Thickness: 0.8-1.2mm

Main roll forming machine Power: 7.5 KW

Forming Speed: 12-15m/min

Dimension: 7*0.8*0.8 m

Weight: 3 T



Machine Main Parts

Manual Decoiler

Roll Forming System

Hydraulic cutter

Control system

Output table



Working Flowing

Manual Un-coiler---- Feeding -----Roll Forming----Cutting ----Product collecting table

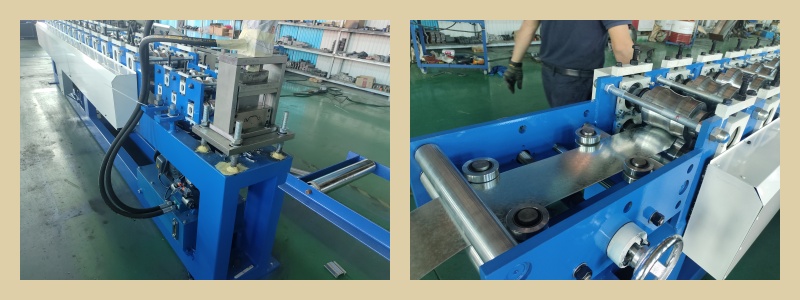

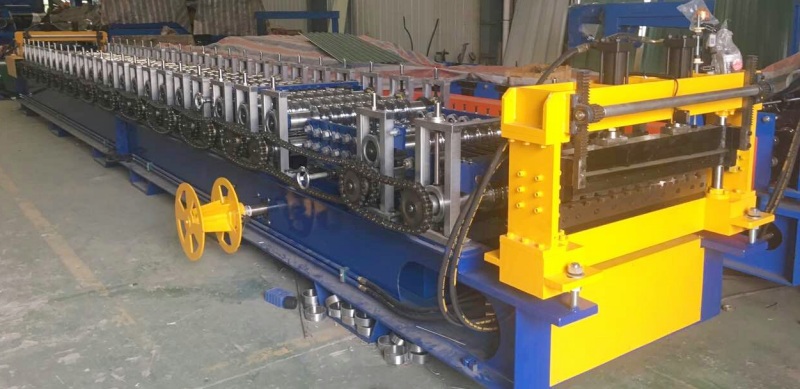

Roller Door Roll Forming Machine Technical Parameter

Manual un-coiler

Capacity:1.5tons

Feeding width: Max. 300mm

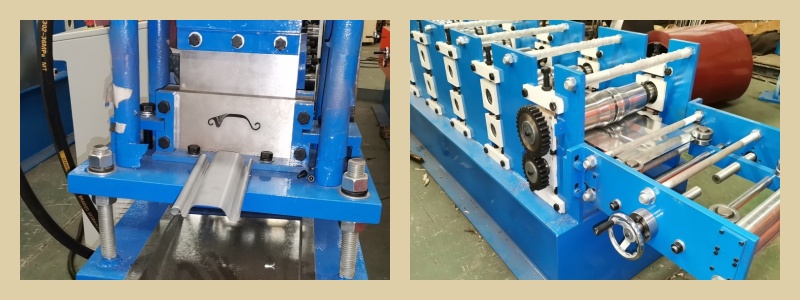

Cold Rolling Mills

Feeding section with guide

Gear/Sprocket driving；15-step to form；

Rollers manufactured from 45 # steel, CNC lathes, hard Chrome Coated

Shafts Diameter=ф65mm, Precision Machined

Main motor =4KW, Frequency speed control

Forming speed：Approx. 7-10m/min

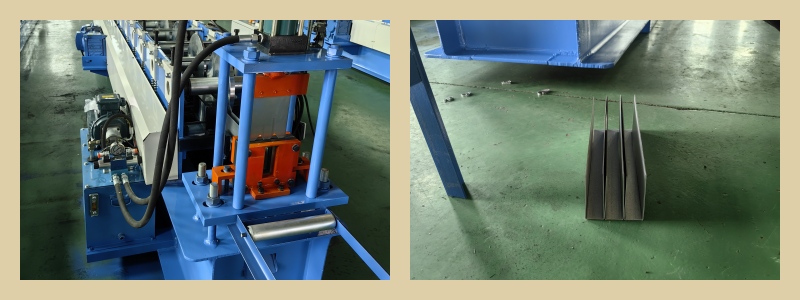

Hydraulic cutting device

Pump motor =3KW; Cutting pressure=Max.10Mpa

Cutting tool material: Cr12, Heat treatment



PLC Control System

Control the cutting length & quantity automatically.

Combined with：PLC, inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control voltage 24V

Product Rack   Un-powered, 2 units



Machine length: approx. 5.8m, whole line length: about 7.3m



Roll-Up Shutter Door Basics & Single-Layer Machines

Roll-up shutter doors consist of interconnected horizontal slats that open vertically, saving space while offering speed and versatility for industrial, commercial, and residential use. These doors operate manually or via motor, with models like PU Rolling Shutters providing insulation against hail, high winds, and noise.

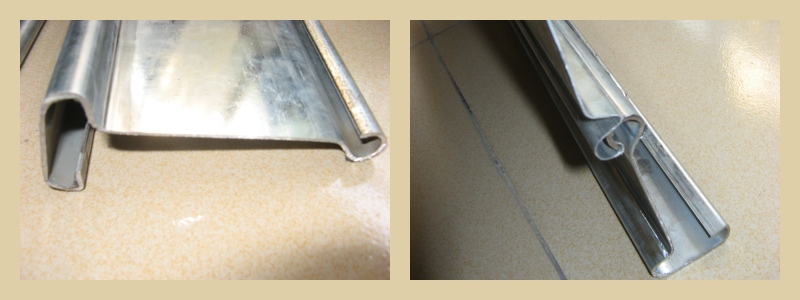

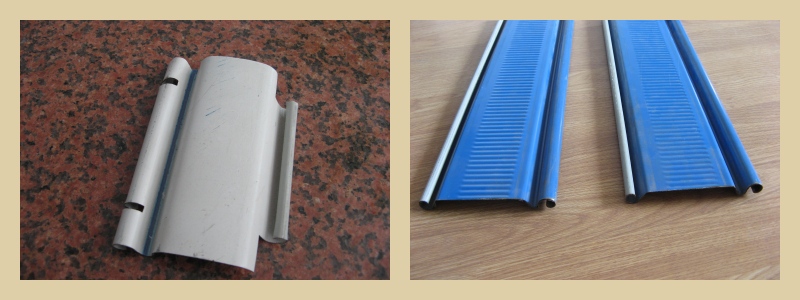

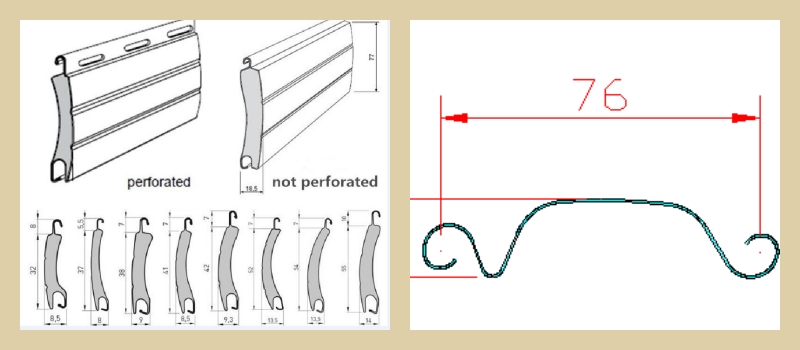

Single-layer shutters, crafted from S-shaped steel slats using roll forming machines, feature male-female joints for easy assembly. Ideal for garages and warehouses, they require 10–15 roller stands and produce slats in 40–200mm widths (0.5–1.5mm thickness) within two months. Their lightweight design simplifies installation and repair, with customizable patterns to meet diverse needs. Xiamen Thrive’s machines ensure rapid production, catering to cost-effective, high-volume demands for standard security applications.



Advanced PU Foamed Shutters & Benefits

Double-layer PU foamed shutters demand a comprehensive production line, including roll forming, PU injection, curing tunnels, and precision cutting. Xiamen Thrive's machines, with 30+ roller stands, ensure tight tolerances for these premium shutters. PU foam cores offer unmatched advantages:



Noise Reduction: Absorbs street noise, ideal for urban areas.



Durability: Quiet operation reduces joint wear, extending lifespan.



Energy Efficiency & Fire Resistance: High-density foam insulates interiors, cutting energy costs while meeting fire safety standards.



Weatherproofing: Resists extreme weather, perfect for main entrances in storm-prone regions.



These shutters balance functionality and aesthetics, making them a top choice for homes, offices, and high-traffic facilities.



Machinery Types & Installation Requirements

Roll forming machines for shutter strips fall into two categories:



Gearbox-Driven Machines: High-speed, heavy-duty systems handling steel up to 1.5mm thick. Though costly, they deliver precision for premium shutters.



Chain-Driven Machines: Budget-friendly options for thinner steel (≤1.25mm), suitable for lightweight applications.



Installation requires 15m x 5m floor space and three-phase power. Xiamen Thrive's 15+ years of expertise ensures tailored solutions, whether clients prioritize affordability (chain-type) or high-performance (gearbox). From compact single-layer units to advanced PU foam lines, their machines adapt to global standards, backed by reliable technical support and rapid delivery.
