How does the feeding device of a roll forming machine operate?

In plain terms, the feeding device of a roll forming machine is basically the first "feeding gateway" of the machine, and its role is crucial—it not only needs to vertically feed raw materials like steel coils and aluminum coils into the main roll forming machine, but also has to keep a tight watch to prevent the material from running off track. Think about it: if the material deviates even a little, the shape of the sheet pressed later will definitely be wrong. So this thing is like installing a "navigation system" for the machine, ensuring the material moves straight and steady.

This feeding device usually has two core components: feed rolls and a width-adjustable feed plate. The feed rolls are like two friction rollers that "grip" the material and feed it forward; they don’t have much force but are steady, making it hard for the material to slip. The feed plate is even more flexible—the width can be adjusted according to the sheet size. For example, if you use 50 cm wide material today and switch to 60 cm tomorrow, workers can just push it in or pull it out with their hands, twist a few screws, and it’s done without much effort.

Two types of adjustment methods for roll forming machines: manual and automatic

How to choose which type is available? Mainly depending on how "busy" the roll forming machine is with width adjustments.

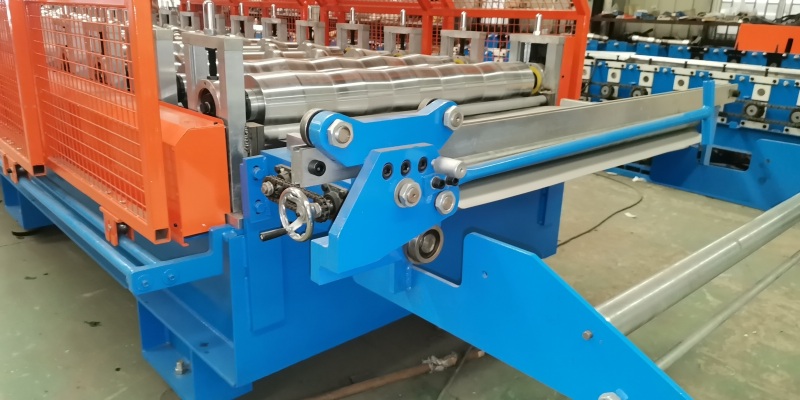

Manual Adjusting Feeding Device

Let’s start with manual adjustment, which is common in "specialized" machines. Take roof panel forming machines, floor deck roll forming machines, and roller door forming machines—these thin-sheet devices mostly produce one or two fixed models per machine. They rarely need width changes, and even if they do, the adjustment range is only a few centimeters. Manual adjustment is more than enough here: workers can tighten the adjustment screws with a wrench, finish in three to five minutes, save money, and are not prone to breakdowns—super cost-effective.

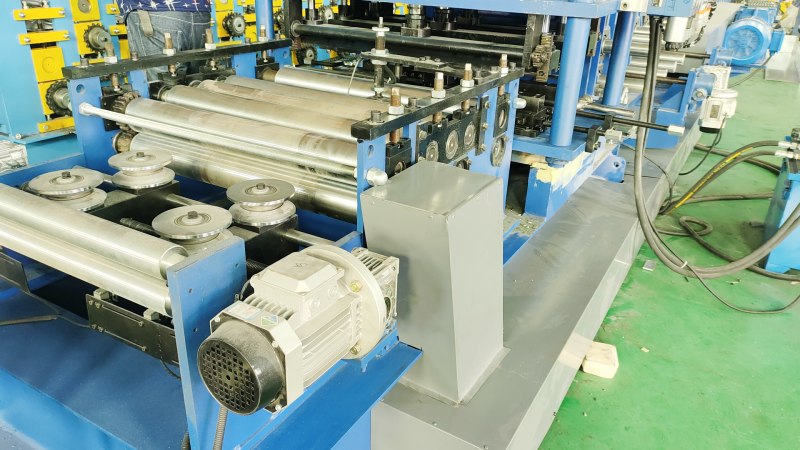

Auto Adjusting Feeding Device

But for "versatile" equipment, like roll forming machines with stepless width adjustment, such as c purlin roll forming machine, Z purlin roll forming machine c z purlin roll forming machine or some size interchangeable standing seam roof machine, manual adjustment can’t keep up. Designers will definitely choose automatic adjustment. Automatic ones are more advanced: there’s a low-power motor on the left and one on the right at the feed end. The two motors work together to drive the feed plate to move left and right, making width adjustment a breeze. The adjustable range is designed based on the machine’s maximum and minimum feed widths.

Why these two types of feeding device?

It really comes down to "how much width adjustment is needed." Manual is great for roll forming machines that rarely adjust or with small ranges—simple and hassle-free. Automatic is for forming machines that adjust frequently and over large ranges—it saves labor and is more precise. Either way, the core is to "feed" the material well. After all, if it starts straight, the finished product will turn out great. That’s why the feeding device is truly the "unsung hero" of roll forming machines!
